4 Channel Remote (315Mhz) + Receiver Module (315Mhz)
  • 4 Channel Remote (315Mhz) + Receiver Module (315Mhz)
  • 4 Channel Remote (315Mhz) + Receiver Module (315Mhz)

#521: 4 Channel Remote (315Mhz) + Receiver Module (315Mhz)

R58.05

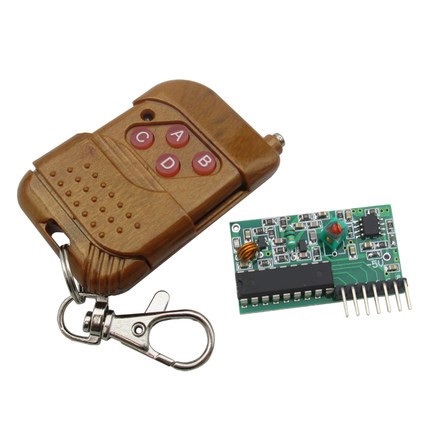

This remote control comes with the receiver module that can simply be connected to an Arduino.

The remote control itself is small enough to fit on a keyring and has a keyring chain connection point. The remote control also has the ability to extend the antenna by a few cm to increase range.

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pins D0, D1, D2, and D3 of. As soon as a button is pressed, a signat is transmitted and the corresponding data bit on the receiver module output high

The receiver module easily connects to either a relay or to an Arduino to receive commands from the remote control.

The remote control is not designed to be attached to an Arduino or microcontroller as it is a standalone product that is not intended to be opened or modified.

A 4 channel remote (315MHz) + receiver module (315MHz) is a wireless communication system that allows a user to remotely control a device or system using a handheld transmitter. The transmitter sends signals to the receiver module, which is typically connected to the device or system that is being controlled. The remote has four buttons or channels, each of which can be programmed to perform a specific function.

The 315MHz frequency is a commonly used frequency band for wireless communication, and the receiver module is designed to receive signals in this frequency band. The range of the transmitter and receiver will depend on the specific design of the system and may be affected by factors such as interference from other electronic devices, physical barriers, and distance.

Possible applications for a 4 channel remote (315MHz) + receiver module (315MHz) include controlling home automation systems, remote-controlled toys, and other electronic devices that require remote control. It is important to note that the use of wireless communication systems may be regulated by local laws and regulations, and it is the responsibility of the user to ensure compliance with these laws.

Product Details

Remote control:
  1.Operating voltage: DC12V (27A/12V battery x1)
  2.Operating Current: 10mA @ 12V
  3.Radiated power: 10mw @ 12V
  4.Modulation mode: ASK (Amplitude Modulation)
  5.Transmitting frequency: 315MHZ
  6.Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm)
  7.Encoder types: fixed code

Receiver Module

  1.Operating Voltage: DC5Vreceiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.

  2.Receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.

  3. 7-Pins /7 bits: (in order) VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin upon receiving a valid signal, the pin output high, may also drive a relay directly.

  4.Size: 6.6*22*41mm




Product Details

Est. Packaging Size Specifications

N/A
