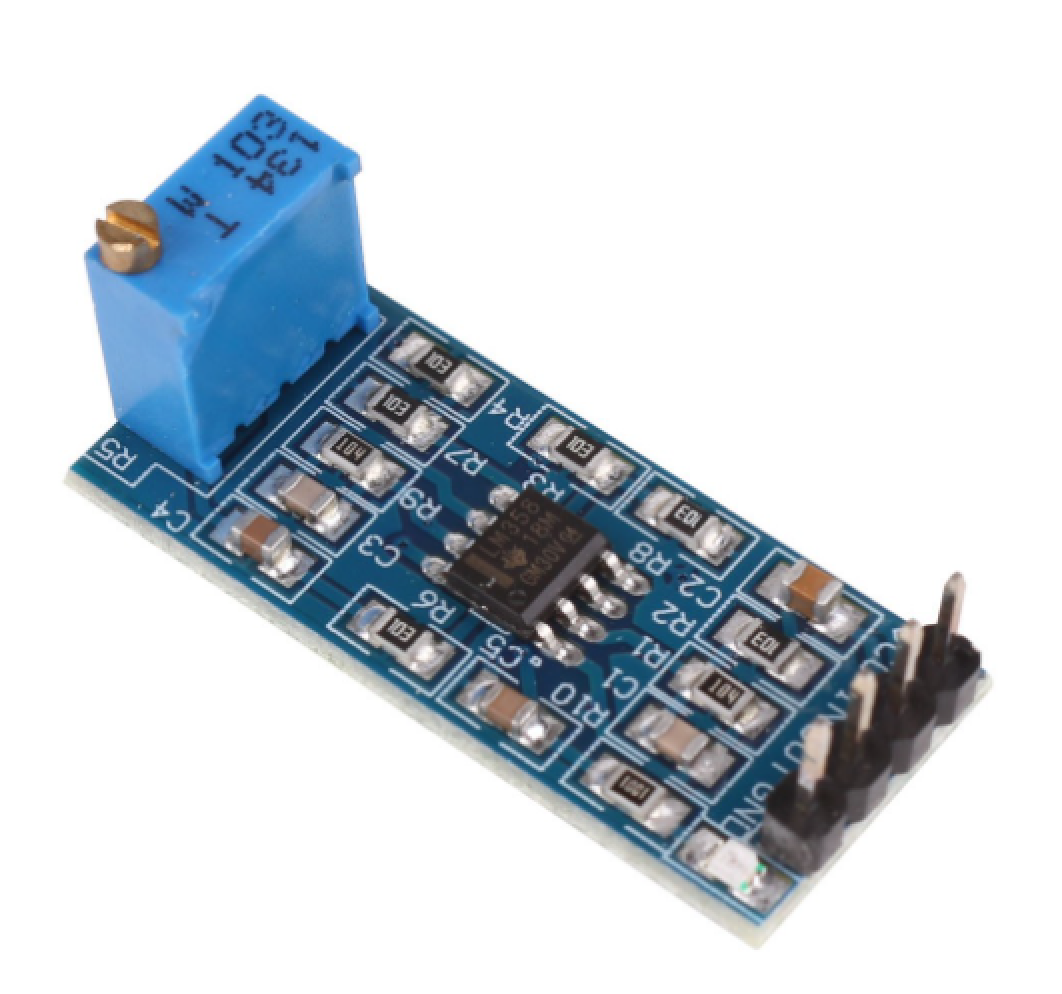

#5015: SIGNAL AMPLIFIER OP-AMP MODULE (LM358)

R43.00


The LM358 operational amplifier module is handy for providing basic waveform amplification in a project such as boosting a signal from a microphone.

The gain has a range of 1x to 100x and is adjustable using the multi-turn potentiometer on the module.  Turning the pot CW lowers the amplification while turning it CCW increases it.

An power LED is included on the module.

Product Details

  • Adjustable gain up to 100x
  • Gain adjustment pot
  • 1 Channel
  • Frequencies up to 700kHz
  • 3-32V operation



  •  Operational Ratings
         Vcc  Range 3-32V (3.3 or 5V typical)
         Current Max Sink Current 20mA
      Max Source Current 30mA
         Bandwidth   700kHz


Product Details

Est. Packaging Size Specifications

N/A
