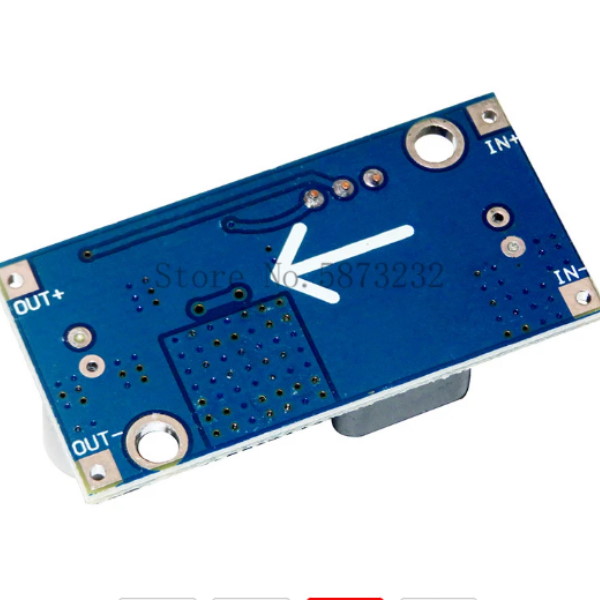

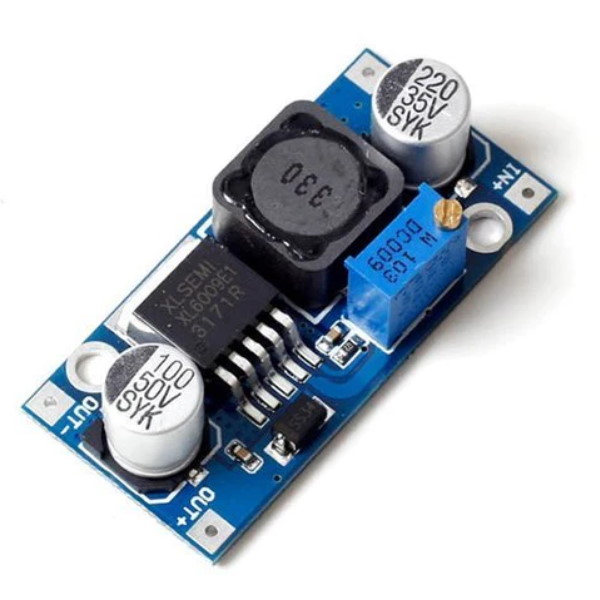

#12699: XL6009 Step-Up Boost Module (5-32V to 5-35V)

R68.80

The XL6009 Step-Up Boost Module is a versatile voltage converter that allows you to increase the output voltage to a level higher than the input voltage. It is a non-isolated boost converter that features adjustable output voltage and high efficiency. Here are the specifications and considerations for using the module:

Considerations:

• Input Voltage Threshold: The module is not well-suited for input voltages of 5V and below. The threshold for boosting the converter is too low, and attempting to boost from such low input voltages may cause the output voltage to rise uncontrollably and potentially reach over 50V unregulated. It's essential to ensure the input voltage is within the specified range to avoid issues.

Applications:

• Power Supply for Electronics: The XL6009 boost module can be used to power various electronic devices or projects that require higher voltage levels than the available power supply can provide.

• Battery Charging: The module can be employed to charge batteries with higher voltage requirements than the input voltage of the charging source.

• LED Driver: The XL6009 can be used to drive LEDs that require higher voltages for specific applications.

Adjusting Output Voltage:

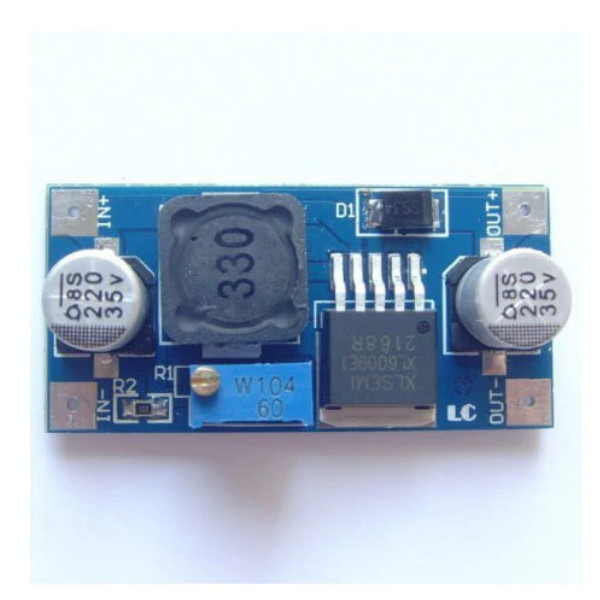

• To adjust the output voltage, you can use a multi-turn potentiometer (trimmer) provided on the module. Turning the potentiometer clockwise will increase the output voltage, while turning it counterclockwise will decrease it.

Efficiency and Heat Dissipation:

• The module's high efficiency (up to 92%) helps reduce power losses during voltage conversion. However, during high current operations, the module may generate some heat. Adequate heat dissipation and cooling measures might be necessary to ensure the module's stable operation.

Safety Precautions:

• When using the module, ensure that you follow proper safety precautions and avoid input voltages below 5V. Always verify the input and output voltage levels to prevent any damage to your connected devices or the module itself.

Overall, the XL6009 Step-Up Boost Module is a useful tool for increasing voltage levels in various electronic projects. It provides flexibility and efficiency in voltage conversion tasks, but it's crucial to operate it within its specified input voltage range to ensure safe and reliable operation.
