#12681: 12V Programmable Timer Relay

R264.60

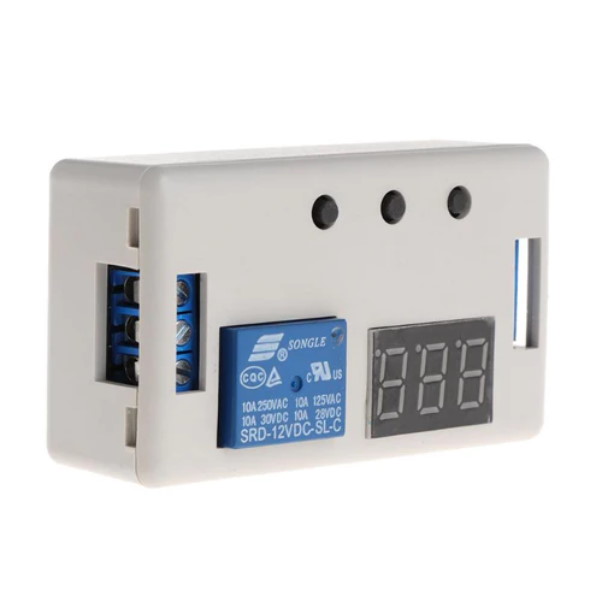

The 12V Programmable Timer Relay is a versatile and user-friendly module designed to automate various projects. It combines an electromechanical output relay with a control circuit, allowing you to set specific time intervals for turning on and off appliances, lights, or other electrical devices.

Key Features of the 12V Programmable Timer Relay:

  1. Relay Type: The module uses an electromechanical relay with one channel, meaning it can control one electrical load.

  2. Input Voltage: The module operates with a 12V DC input voltage, making it suitable for use with 12V power sources.

  3. Max Control Capacity: The relay can handle a maximum control capacity of 10A at 30V DC or 10A at 250V AC. This means it can control loads with a maximum current of 10A.

  4. Control Signal: The module uses a TTL level control signal (HIGH/LOW) to trigger the relay. This signal is commonly used in digital circuits.

  5. Coil Pick-Up Voltage: The coil pick-up voltage is 9V DC, which means the relay will activate when the control signal reaches this voltage level.

  6. Coil Drop-Out Voltage: The coil drop-out voltage is 1.2V DC, which means the relay will deactivate when the control signal drops below this voltage level.

  7. Integrated Parameter Memory: The module has an integrated parameter memory, allowing it to retain the programmed settings even after power is disconnected.

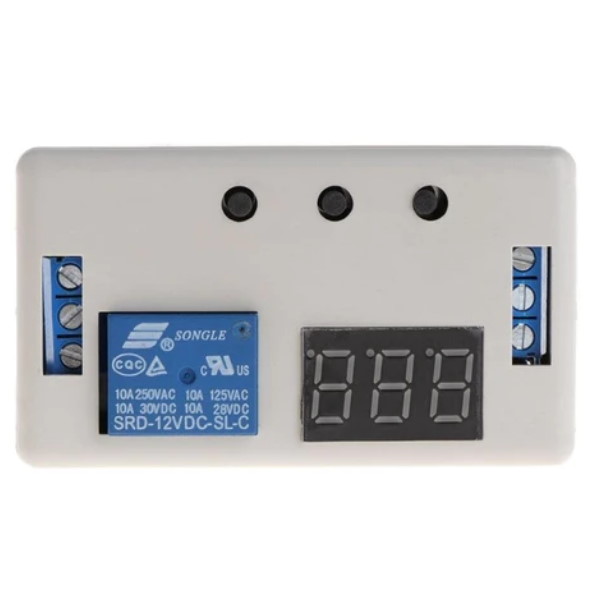

  8. Onboard Indicators: The module features a 3x7-Segment Digital Tube Display and LEDs to indicate power status and relay activation.

  9. Onboard Controls: The module has three buttons (Up, Down, Set) to easily navigate and set the desired time intervals and modes.

  10. Onboard Timer Limit: The timer limit of the module is 999 seconds or approximately 6.65 minutes. You can set time intervals in seconds, minutes, or hours.

  11. Max Switching Rate: The maximum switching rate of the relay is 2000ms or 2 seconds.

The 12V Programmable Timer Relay offers four modes (P-1, P-2, P-3, P-4) with different functionalities, allowing you to customize the timer operation to suit your specific project requirements. The module's compact size (70 x 40 x 24mm) and ease of use make it a convenient choice for hobbyists and DIY enthusiasts looking to automate and control electrical devices with precise timing intervals.



Product Details

12V Programmable Timer Assembly: The 4 Modes

  • P-1: When triggered the relay will activate and the countdown will start, once it reaches 0 the relay will deactivate.
  • P-2: When triggered the countdown will start, once it reaches 0 the relay will activate and a second countdown will start, and once it reaches 0 again the relay will deactivate.
  • P-3: This mode is a loop, a countdown will start, and once it finishes the relay will activate and a second countdown will start. When it reaches 0 the relay will deactivate and the process starts over.
  • P-4: While triggered the relay is deactivated when the trigger is removed the countdown starts as soon as it reaches zero the relay is activated.

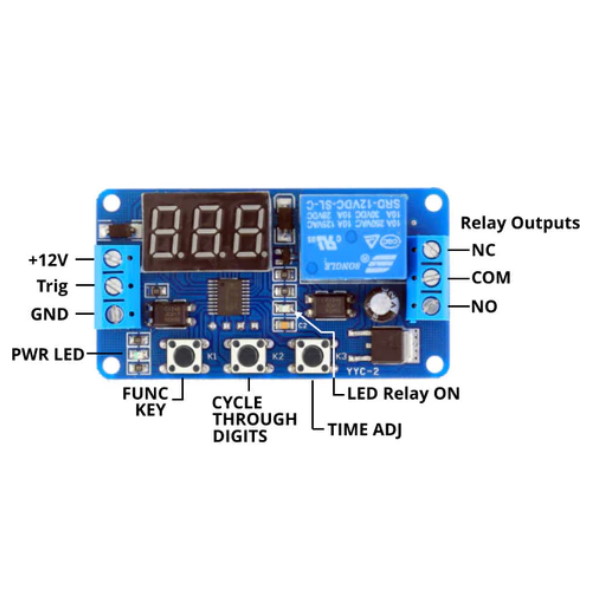

How to Enter the 12V Programmable Timer Assembly Setup

  1. After powering up the module, hold the button K1. This will show the modes.
  2. To cycle through the modes, press button K1.
  3. Press K2 to enter the desired mode, and to cycle through the digits press K2 again(some modes have 2 sets of digits 1 for on 1 for off times).
  4. Press K3 to cycle through the numbers. 0-9
  5. After the time is set you can move the decimal space by pressing K3, doing this will allow you to set microseconds, seconds, minutes, and hours.
  • Relay Type: Electromechanical
  • Number of Relays/Channels: 1
  • Input Voltage: 12V DC
  • Max Control Capacity (DC): 10A 30V DC
  • Max Control Capacity (AC): 10A 250V AC
  • Control Signal: TTL Level (HIGH/LOW)
  • Coil Pick-Up Voltage: 9V DC
  • Coil Drop-Out Voltage: 1.2V DC
  • Integrated Parameter Memory: Included
  • Onboard Indicators: 3x7-Segment Digital Tube Display, 1 x Power LED, 1 x Relay LED
  • Onboard Controls: 3 x Buttons, Up | Down | Set
  • Onboard Timer Limit: 999 seconds / ±6.65 minutes
  • Max Switching Rate: 2000ms / 2 seconds

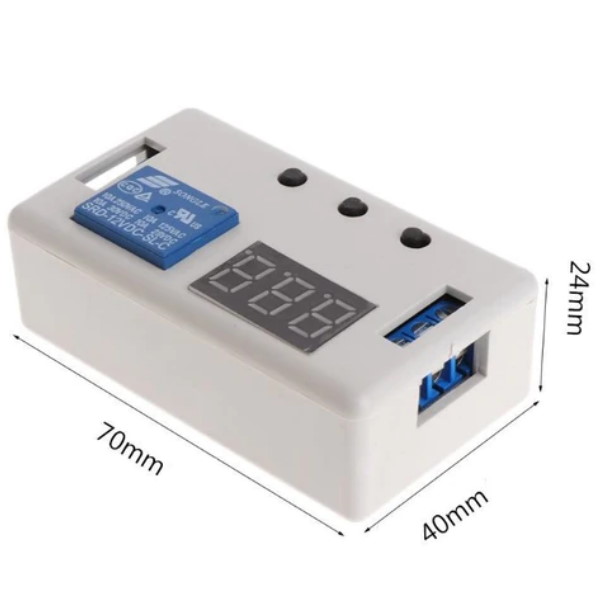

  • Dimensions: 70 x 40 x 24mm
