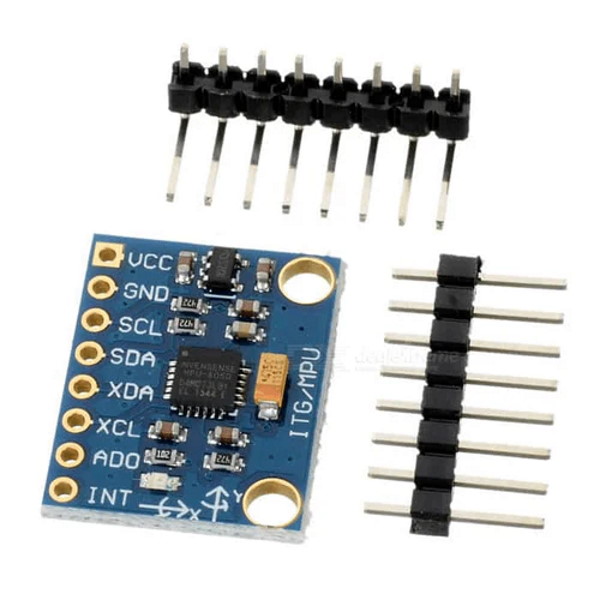

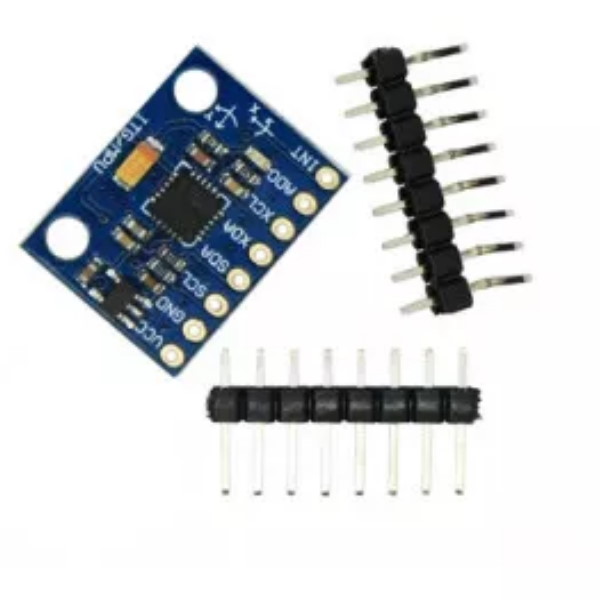

#12669: GY-521 MPU6050 6-Axis IMU Gyroscope/Accelerometer Sensor Module

R90.96

he GY-521 MPU6050 is a 6-axis IMU (Inertial Measurement Unit) sensor module that integrates a 3-axis gyroscope and a 3-axis accelerometer on the same chip. This combination allows the module to measure both angular velocity (gyroscope) and linear acceleration (accelerometer) independently, providing comprehensive motion sensing capabilities.

Here are some key features and specifications of the GY-521 MPU6050:

1. Chipset: The module is based on the MPU-6050 chip from Invensense, which is a highly reliable and widely used IMU sensor chip.

2. Power Supply: The module operates on a voltage range of 3V to 5V, and it has an internal regulator that allows it to work with a supply voltage of 2.3V to 3.4V.

3. Communication: The communication mode is through the standard I2C (Inter-Integrated Circuit) protocol, making it easy to interface with microcontrollers and other devices.

4. Data Output: The chip has a built-in 16-bit analog-to-digital converter (ADC), providing 16-bit data output for accurate measurements.

5. Gyroscope Range: The gyroscope can measure angular velocity in ranges of ±250, ±500, ±1000, and ±2000 degrees per second.

6. Acceleration Range: The accelerometer can measure linear acceleration in ranges of ±2g, ±4g, ±8g, and ±16g.

7. Immersion Gold PCB: The module uses an Immersion Gold plating process for the PCB, ensuring high quality and reliability.

8. Pin Pitch: The pin pitch is 2.54mm, making it compatible with standard breadboards and prototyping boards.

The MPU-6050 chip contains an onboard Digital Motion Processor (DMP), which is responsible for processing complex 6-axis MotionFusion algorithms. This allows the module to perform sensor fusion, combining data from both the gyroscope and accelerometer to provide accurate and reliable motion tracking information.

One of the advantages of the MPU6050 is its ability to access external sensors, such as magnetometers, through an auxiliary master I²C bus. This feature allows the module to gather a full set of sensor data without intervention from the main system processor, making it efficient and convenient for motion sensing applications.

The GY-521 MPU6050 module is widely used in various projects and applications, including robotics, drones, motion tracking, gesture recognition, and more. Its compact size and ease of use make it a popular choice for DIY projects and electronics enthusiasts.
