#12751: CAN BUS Arduino Module (MCP2515)

R151.20

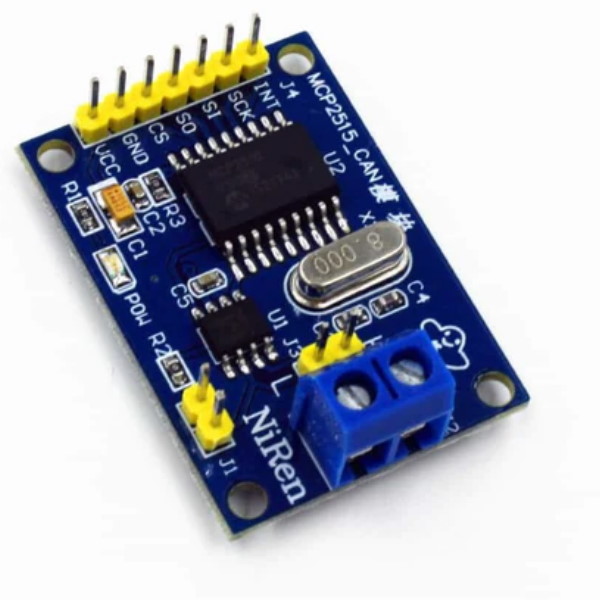

The Arduino CAN BUS Module MCP2515 is an electronic module designed to seamlessly integrate with Arduino microcontrollers, enabling projects to interface with the Controller Area Network (CAN) protocol. This protocol is widely used in industrial machinery and automotive applications due to its high reliability, long communication distances, and medium communication speed.

Key Features and Specifications:

• CAN Network Integration: The module is designed to connect electronic projects to the CAN network, allowing seamless communication between Arduino microcontrollers and other CAN devices.

• CAN MCP2515 Controller: The module features the MCP2515 CAN controller, which communicates over a high-speed SPI interface (10 MHz). This ensures efficient and reliable data transfer between the module and the CAN network.

• TJA1050 Transceiver: The integrated TJA1050 transceiver ensures proper signal conversion and communication between the CAN bus and the module.

• Compatibility: The module is compatible with various platforms, including Arduino, PIC, Raspberry Pi, and others, making it versatile and suitable for a range of applications.

• High Reliability: CAN networks are known for their high reliability and noise immunity, making this module a robust choice for communication in industrial and automotive settings.

• Connection and Fixing: The module includes perforations for easy fixing and four holes for physical attachment. It offers a set of seven different pins specified on the board and screw terminals for easy connection.

• Data Field: The module supports data fields ranging from 0 to 8 bytes, accommodating various data transmission needs.

• CAN v2.0b at 1 Mb/s: The module supports the CAN v2.0b standard at a communication speed of 1 Mb/s, ensuring efficient and high-speed data transfer.

• Dimensions: The module has dimensions of 40mm x 28mm x 11mm, making it compact and suitable for integration into various projects.

• Power and Current Consumption: The module operates at a supply voltage of 5VDC and has a working current of 5mA (1uA standby), contributing to energy-efficient operation.

• Applications: The module is ideal for designers, hobbyists, and engineers who want to explore the capabilities of the CAN protocol and integrate it into their projects. It can be used for tasks such as reading motor rotation and vehicle speed through the OBDII pins.

The Arduino CAN BUS Module MCP2515 provides a convenient way to incorporate CAN communication into electronic projects, making it suitable for a wide range of industrial and automotive applications. Its high reliability, compatibility with various platforms, and ease of use make it an excellent choice for those looking to work with the CAN protocol.
