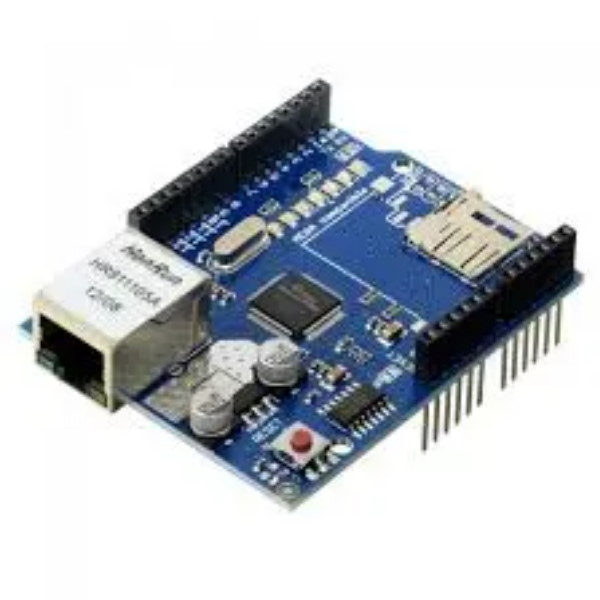

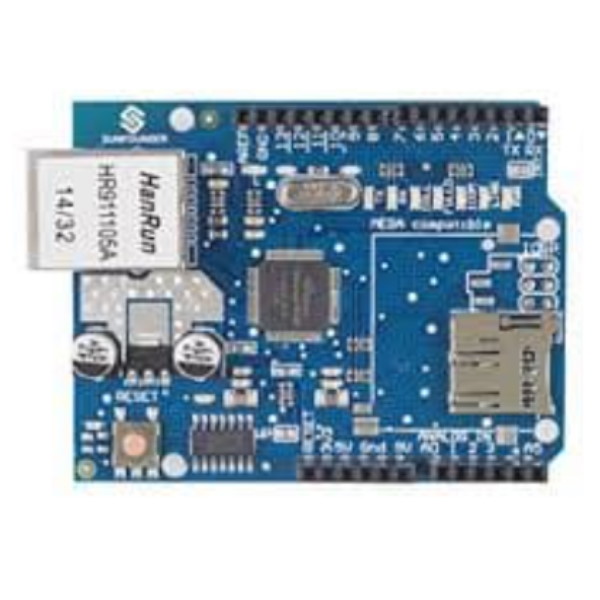

#12696: Arduino LAN Ethernet Shield (W5100)

R472.50

The Arduino Ethernet Shield R3 is a versatile and valuable addition to any Arduino project, as it enables the Arduino board to connect to the internet. It is built around the Wiznet W5100 ethernet chip, which provides a reliable network (IP) stack capable of handling both TCP and UDP protocols. With support for up to four simultaneous socket connections, it allows the Arduino to communicate with various devices and servers over the internet.

The upgraded version of the Ethernet shield now includes a micro-SD card connector, making it even more versatile for data storage and retrieval. It is also compatible with Arduino Mega boards, expanding its applicability to larger projects.

Connecting the Ethernet shield to an Arduino board is straightforward, thanks to the long wire-wrap headers that extend through the shield, keeping the pin layout intact and enabling other shields to be stacked on top. However, it's essential to note that the digital pins 10, 11, 12, and 13 (SPI) are dedicated to communicating with the W5100 chip and cannot be used for general input/output purposes.

The shield features a standard RJ45 ethernet jack, ensuring easy connectivity to wired networks. Please note that an Arduino board is required to use this shield, as it is not included with the product.

In summary, the Arduino Ethernet Shield R3 with the Wiznet W5100 driver is a reliable and efficient solution for adding internet connectivity to your Arduino projects. Whether you want to build a web server, interact with cloud services, or implement network-based communication, this shield provides a seamless and straightforward way to get your Arduino connected to the world wide web. It is compatible with Uno and Mega boards, making it suitable for a wide range of applications.
