#5153: SN74LS00 - Quad 2-input NAND Gate (7400)

R8.38

The SN74LS00, also known as the 7400, is a powerful Quad 2-input NAND Gate that offers unmatched versatility and efficiency in electronic circuitry. This component's four independent gates each feature two inputs, allowing for a multitude of logical operations in various applications. The SN74LS00's high-performance and reliable design make it a go-to choice for engineers and hobbyists alike. With its fast propagation delay and low power consumption, this NAND gate offers a superior solution for any project that requires precision and speed. Experience the power of the SN74LS00 Quad 2-input NAND Gate and take your electronic creations to new heights!

The SN74LS00 is a key building block for digital logic circuits. Its design is based on NAND gate logic, which provides it with the ability to perform logical functions such as AND, OR, and NOT. This component offers excellent fan-out capability, allowing multiple gates to be connected together without compromising performance. The SN74LS00 also features Schmitt-trigger inputs, which provide hysteresis to improve noise immunity and reduce the possibility of false triggering.

The SN74LS00 has a wide operating voltage range of 4.75V to 5.25V, which makes it compatible with a range of electronic systems. Its compact design, low power consumption, and superior performance make it an ideal choice for applications such as counters, registers, and flip-flops, as well as general digital logic circuits.

Overall, the SN74LS00 is a versatile and powerful component that is essential to any electronic enthusiast's toolkit. Its reliable performance, broad compatibility, and multiple logical function capabilities make it a go-to choice for a wide range of digital logic applications.

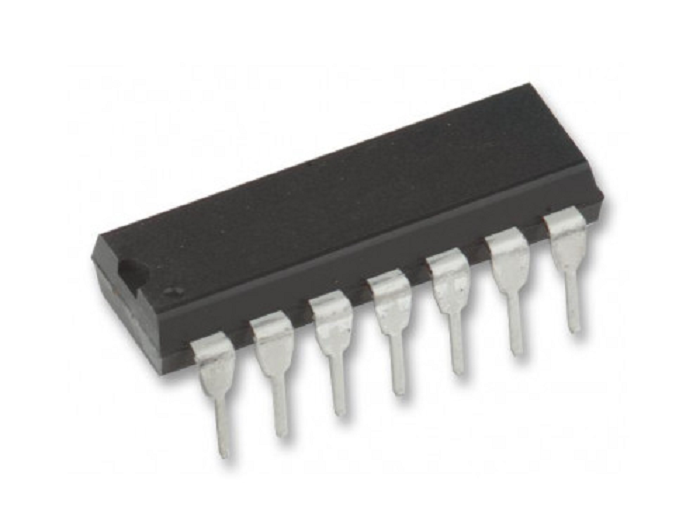

This IC contains a Quad 2-input NAND Gate
