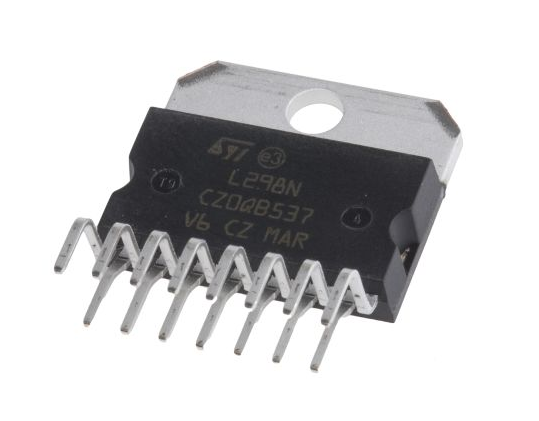

L298N IC (H-Bridge Motor Driver IC, 46V, 4A ,15-Pin)
    Home / Motors / L298N IC (H-Bridge Motor Driver IC, 46V, 4A ,15-Pin)
  • L298N IC (H-Bridge Motor Driver IC, 46V, 4A ,15-Pin)
  • L298N IC (H-Bridge Motor Driver IC, 46V, 4A ,15-Pin)

#3100: L298N IC (H-Bridge Motor Driver IC, 46V, 4A ,15-Pin)

R64.50


The L298N is a H-bridge motor driver IC that can be used to drive DC motors and stepper motors. It can control both the speed and direction of the motors. The L298N can operate with a voltage range of 5V to 46V and can deliver a continuous output current of up to 4A per channel. The IC has a total of four channels, two for each of the two motors that it can drive. It has a total of 15 pins, including input and output pins for each of the four channels and various control and power pins. The L298N can be used with microcontrollers or other control systems to drive motors in a variety of applications.



The L298N IC is the perfect motor driver (H-Bridge) IC for most all projects. It can handle high voltage and high current but care needs to be taken to not overheat the IC during long operations. Usually the IC would have a heatsink attached (such as the L298N Modules available at Leobot Electronics).

The L298N can be used to drive both DC motors and Servo Motors.

Product Details

L298N NXN18178

Operating supply voltage up to 46 V
Max DC current of up to 4 A (2A Recommended max)
Over-temperature protection
Logical "0" input voltage up to 1.5 V



Motor Type Brushed DC
Output Configuration Dual Full Bridge
Maximum IGBT Collector Current 4A
Maximum Collector Emitter Voltage 46 V
Mounting Type Through Hole
Package Type MULTIWATT V
Pin Count 15
Maximum Operating Supply Voltage 46 V
Minimum Operating Supply Voltage 4.8 V
Maximum Operating Temperature +130 °C
Height 10.7mm
Minimum Operating Temperature -25 °C
Width 5mm
Dimensions 19.6 x 5 x 10.7mm
Length 19.6mm
