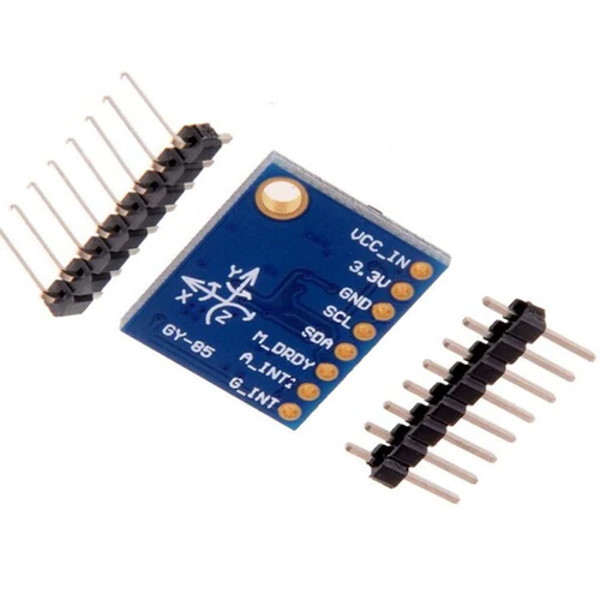

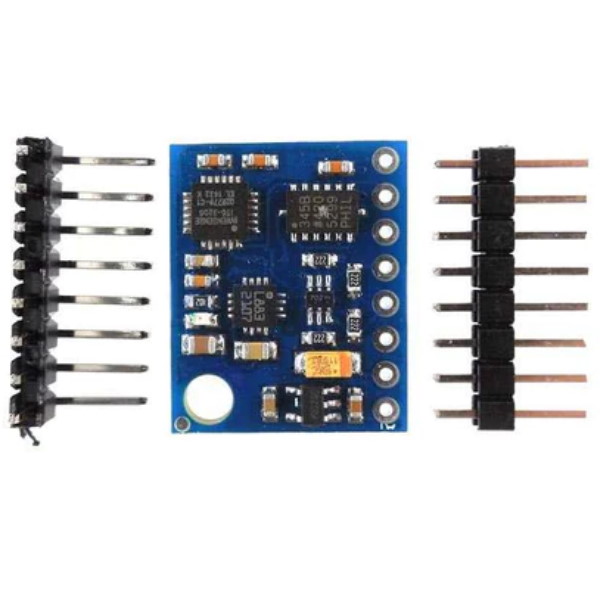

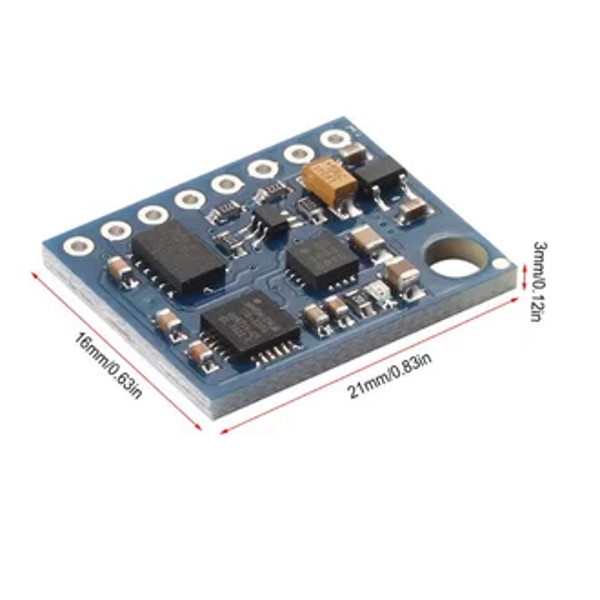

#12668: HW-579 GY-85 9-Axis IMU Gyroscope/Accelerometer/Magnetic Field Sensor Module

R200.34

An IMU (Inertial Measurement Unit) sensor is an electronic module that combines multiple sensors to measure and provide data on linear acceleration and angular velocity in three-dimensional space. It is used to detect changes in position, orientation, and motion of an object or device.

The HW-579 9-Axis IMU Sensor module is a versatile sensor unit that integrates three types of sensors: gyroscope, accelerometer, and magnetometer. These sensors work together to provide comprehensive information about an object's motion and orientation.

1. Gyroscope Sensor: The gyroscope sensor measures angular velocity or how fast an object rotates around its axis. It can detect changes in orientation and rotational movements.

2. Accelerometer Sensor: The accelerometer sensor measures linear acceleration, including changes in speed and direction. It can detect movements in any direction, such as tilting, shaking, or acceleration.

3. Magnetometer Sensor: The magnetometer sensor measures the magnetic field in three dimensions. It can detect the Earth's magnetic field and, when combined with other sensors, provide a sense of absolute orientation in space.

The combination of these three sensors allows the IMU to provide precise and real-time data about an object's movement and orientation in three-dimensional space. This information is commonly used in various applications, including robotics, drones, virtual reality, motion tracking, and navigation systems.

The HW-579 IMU Sensor module features a high-quality Immersion Gold PCB process, ensuring its reliability and performance. It communicates using the IIC (I2C) communication protocol, which is compatible with 3-5V systems. The module contains a built-in level logic converter (LLC circuit), making it easy to interface with various microcontrollers and systems.

With its 9-axis capabilities and advanced sensor integration, the HW-579 IMU Sensor module offers a comprehensive solution for motion sensing and orientation detection, making it a valuable component in many electronic projects and applications.
