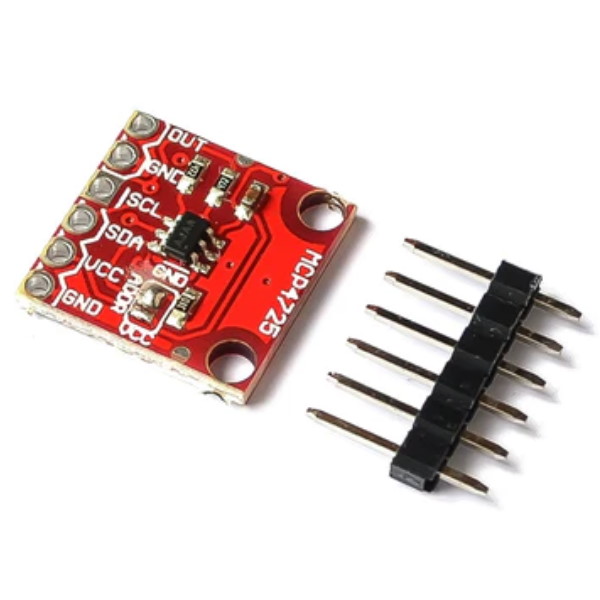

#12736: MCP4725 Digital-To-Analogue DAC Breakout Board Module

R86.00

The MCP4725 Digital-To-Analog DAC Breakout Board Module is a versatile integrated circuit that allows you to convert digital values into analog voltage outputs. It's commonly used in various applications such as generating waveforms, producing audio signals, providing reference voltages, and more.

Features:

1. I2C Interface: The MCP4725 uses the I2C communication protocol, allowing for easy integration with microcontrollers and other digital devices.

2. 12-Bit Resolution: The DAC provides a 12-bit resolution, allowing for precise control over the generated analog voltage levels.

3. Vout Pin: The analog output voltage is available on the Vout pin. You can control the output voltage level by sending appropriate digital values via the I2C interface.

4. Selectable I2C Address: The module features an onboard selectable I2C address, which allows you to connect multiple MCP4725 modules on the same I2C bus.

5. High Update Rate: The DAC can update the Vout voltage at a rate of up to 200kHz, enabling fast signal generation.

6. Rail-to-Rail Output: The output voltage range covers the entire supply voltage range, ensuring a rail-to-rail output.

7. Onboard EEPROM: The module includes onboard EEPROM (Electrically Erasable Programmable Read-Only Memory) for storing values and settings. This is useful for applications where you want to retain specific settings even after power is removed.

8. Wide Operating Voltage Range: The MCP4725 operates with a supply voltage ranging from 2.7V to 5.5V, making it compatible with a variety of power sources.

Applications:

The MCP4725 DAC Breakout Board Module finds applications in various scenarios, including:

• Waveform Generation: Used to create waveforms for testing and analysis.
• Audio Generation: Used to generate audio signals for audio-related projects.
• Reference Voltage: Provides a stable and accurate reference voltage for analog circuits.
• Control Systems: Used to control analog systems and devices.
• Sensors Calibration: Calibrates sensors that require analog input signals.
• Signal Processing: Used for analog signal manipulation and processing.

Note: Proper care should be taken when connecting and using the MCP4725 module to ensure accurate and safe operation. The module's capabilities make it a useful tool in a wide range of electronic and engineering projects.
