R86.00

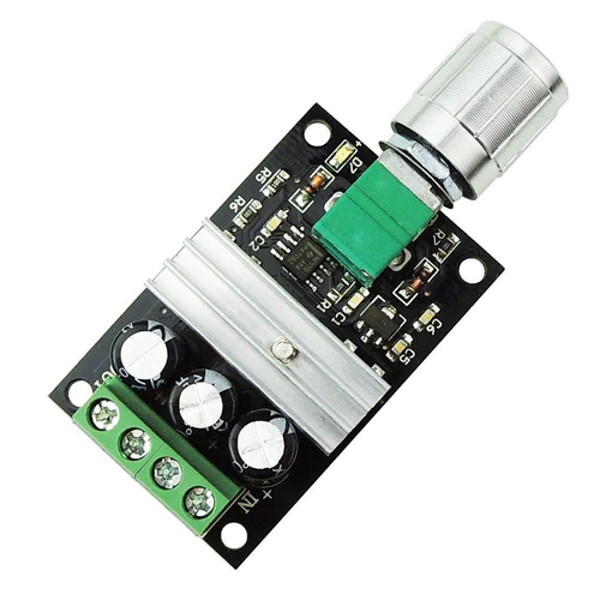

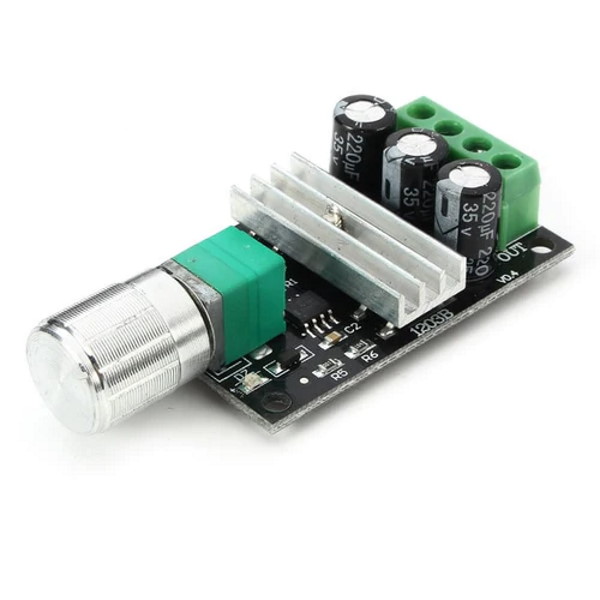

The PWM DC Motor Speed Controller (6V-28VDC, 3A) is a user-friendly module designed to efficiently control the speed of DC motors. It employs Pulse Width Modulation (PWM) modulation, offering advantages over traditional voltage adjustment methods and ensuring safe and optimal motor operation.

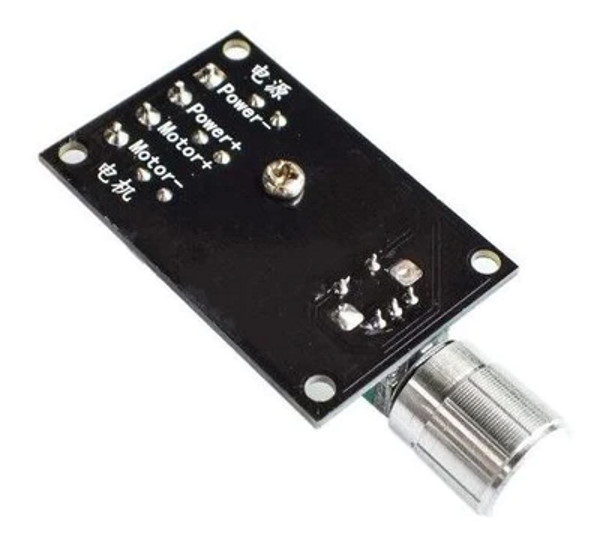

To use the PWM DC motor speed controller, simply connect the power wires to the power terminals marked "power +" and "power -." Then, connect the DC motor to the terminals labeled "motor +" and "motor -." The duty cycle can be adjusted to control the motor speed, with a range from 5% to 100%. PWM modulation ensures efficient motor control, reducing heat dissipation and providing enough torque for motor operation, even at high currents. The module is well-suited for applications that require smooth and reliable motor speed adjustment.
Input supply voltage: 6V-28VDC: This controller can accept input voltages ranging from 6V to 28VDC, making it suitable for a wide range of applications.
Maximum output power: 80W: The controller can handle a maximum output power of 80W, allowing it to drive motors with substantial power requirements.
Maximum continuous output current: 3A: It can deliver a continuous output current of up to 3A, enabling it to control medium-sized DC motors effectively.
Duty Cycle adjustable: 5%-100%: The duty cycle, which represents the ON time of the PWM signal, can be adjusted from 5% to 100%. This flexibility allows precise speed control for different motor applications.
Board Dimensions: L= 50mm, W=32mm, H=16mm: The compact size of the board makes it easy to integrate into various projects and setups.
N/A
