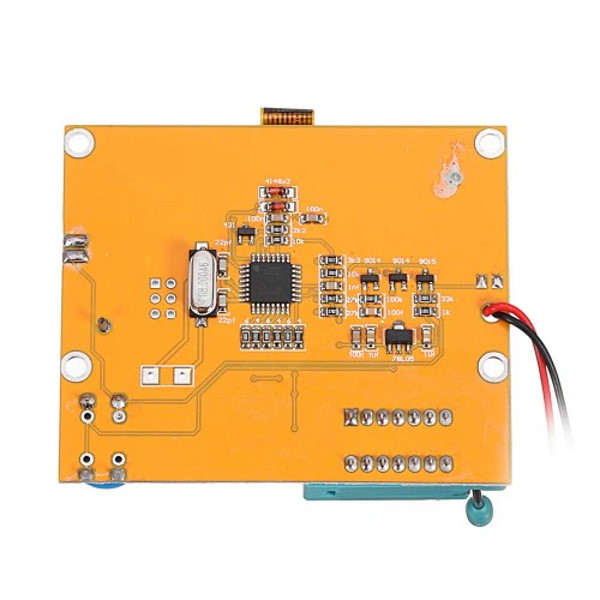

#12661: LCR-T4 Mega328 Transistor Tester (Diode, Triode, Capacitance, ESR Meter, MOS/PNP/NPN L/C)

R567.00

The LCR-T4 Mega328 Transistor Tester is an essential and versatile tool for both beginners and electronic experts. It simplifies the process of testing various electronic components, providing valuable information about their type, pin configuration, and internal values. Here are some reasons why this tester is a must-have for anyone working with electronics:

1. Comprehensive Component Testing: The tester can detect and analyze a wide range of components, including inductors, capacitors, diodes, MOSFETs, transistors (NPN and PNP), SCR, regulators, LED tubes, ESR, adjustable potentiometers, and resistors.

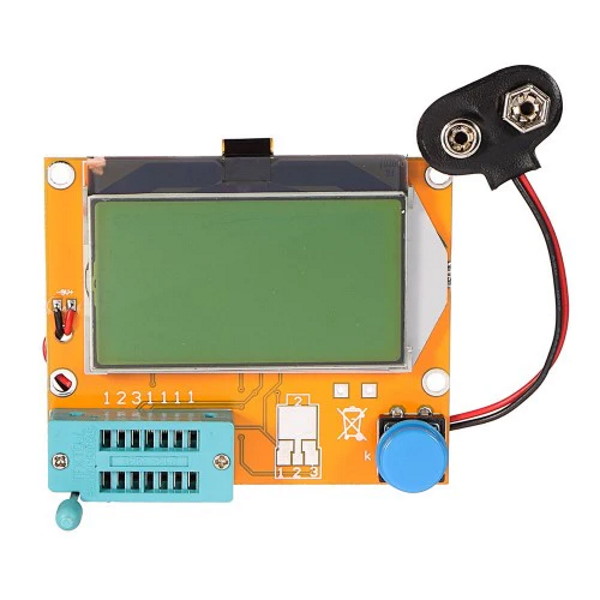

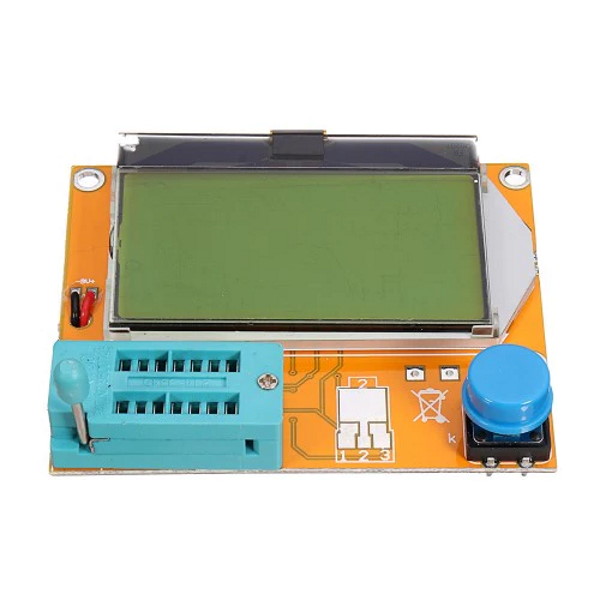

2. User-Friendly Interface: The device features a 128*64 big backlight LCD display, making it easy to read and interpret test results. Its one-button operation ensures a straightforward user experience, and it automatically shuts down after testing to conserve power.

3. Component Identification: The tester automatically identifies the pin arrangement of components, saving time and reducing the chances of making errors during testing.

4. Transistor and MOSFET Analysis: It can determine the amplification coefficient of bipolar transistors and the base-emitter threshold voltage. For MOSFETs, it measures the gate threshold voltage and capacitance.

5. Capacitance and ESR Measurement: The tester accurately measures capacitance in the range of 30pF to 100mF with a resolution of 1pF. Additionally, it can measure the equivalent series resistance (ESR) of capacitors.

6. Diode and LED Testing: It can detect diodes, determine their forward voltage, and identify LED components. It also distinguishes between regular diodes and combo LEDs.

7. Resistance Measurement: The tester has a wide resistance measurement range, from 0.1 ohms to 50M ohms. It can simultaneously measure two resistors, even in the presence of potentiometers.

8. Zener Diode Identification: The tester can identify Zener diodes with a reverse breakdown voltage of less than 4.5V.

9. Low Power Consumption: The device has a low standby current of only 20nA, ensuring efficient power usage and prolonged battery life.

10. Robust Construction: The tester is designed for portability and comes with a protective shell and matching screws, making it durable and suitable for fieldwork.

Overall, the Mega328 Transistor Tester offers a wealth of testing capabilities in a compact and user-friendly form factor. It is an indispensable tool for diagnosing, identifying, and troubleshooting electronic components, making it an excellent addition to any electronics enthusiast's toolkit.
