#12627: NEMA 17 and 775 DC Motor Angled Mounting Bracket (High Hardness Alloy Aluminium)

R79.24

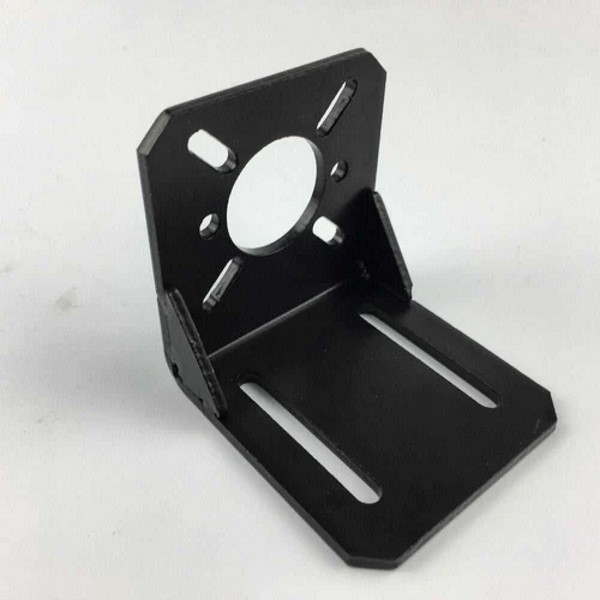

Introducing the NEMA 17 and 775 DC Motor Angled Mounting Bracket, crafted from High Hardness Alloy Aluminum, ensuring durability and reliability for mounting your desired motors. This versatile mounting bracket is designed to accommodate both NEMA 17 stepper motors and High Torque 775 Motors, making it a perfect fit for various motor types.

With this universal bracket, you have the flexibility to attach different motors, securing them to your frame using M4 screws for a sturdy and secure setup. The bracket's sliding screw holes offer precise adjustments, ensuring optimal accuracy for your CNC machines or 3D printers.

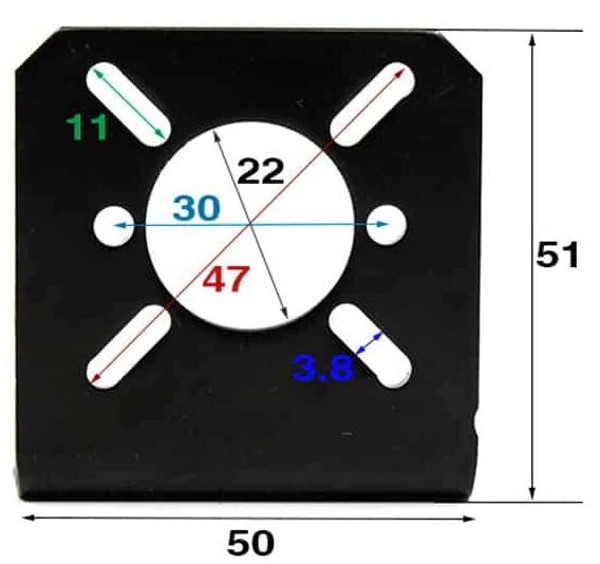

The vertical section of the bracket boasts a thickness of 2mm (0.08 inches), a height of 5.2cm (2.0 inches), and a width of 5.0cm (1.9 inches), all made from high hardness alloy aluminum, providing exceptional strength and durability.

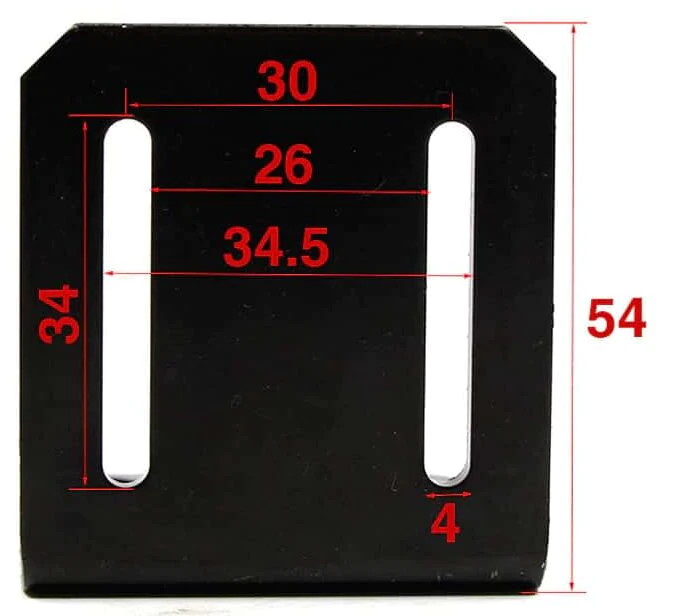

The bottom section is crafted from stainless steel, with a thickness of 1.5mm (0.059 inches), adding further stability and reliability to the mounting.

The center stepped hole has a diameter of approximately 17mm (0.6 inches), designed to securely hold your motors in place.

For motor fixing, the bracket features 4mm holes, suitable for M4 screws, ensuring a secure and hassle-free installation process.

Experience the convenience and versatility of the NEMA 17 and 775 DC Motor Angled Mounting Bracket, offering a robust solution for mounting various motors in your projects. Whether it's CNC machines, 3D printers, or other motor-driven applications, this bracket ensures a reliable and accurate setup, making it an essential component in your mechanical toolkit.
