#12733: XH-M609 Battery Protection BMS Module (DC 12-36V Lead Acid and Lithium Ion batteries)

R151.20

The XH-M609 Battery Protection Module is a versatile electronic device designed to provide protection and management for batteries, specifically DC 12-36V lead acid and lithium-ion batteries. It offers multiple advantages to ensure safe and efficient battery usage.

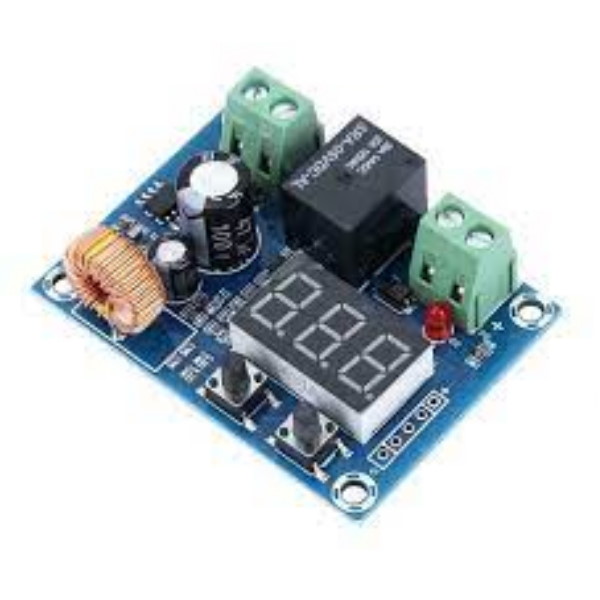

XH-M609 Battery Protection Module:

Features:

1. Overcharge Protection: Prevents the battery from being overcharged, which can damage the battery and reduce its lifespan.

2. Over-Discharge Protection: Automatically disconnects the battery when its voltage drops to a certain level, preventing deep discharge and potential damage to the battery.

3. Short Circuit Protection: Safeguards the battery and connected devices against short circuit conditions that could lead to accidents or damage.

4. Overcurrent Protection: Monitors and limits the current flowing through the circuit to prevent overheating and potential hazards.

5. Automatic Power-Off Function: Built-in function that automatically disconnects the battery when certain voltage conditions are met.

6. LED Digital Tube Display: Features three red LED digital tubes that display relevant information, such as battery voltage or protection status.

7. Adjustment Buttons: Includes two adjustment buttons for configuring settings and parameters.

8. LED Indicator: Provides visual indication of the module's status, such as when it is connected to the battery.

Application:

The XH-M609 Battery Protection Module is designed for a wide range of battery types and is suitable for various applications, including:

• Battery Protection: Protects batteries from overcharging, over-discharging, and other potentially damaging conditions.
• Battery Management: Provides a convenient way to manage and monitor battery voltage and protection status.
• Renewable Energy Systems: Can be integrated into renewable energy systems to protect batteries used for energy storage.
• Portable Devices: Suitable for use in portable devices and projects powered by lead-acid or lithium-ion batteries.
• DIY Electronics: Useful for hobbyists and electronics enthusiasts working on projects involving batteries.

Note: When using the XH-M609 Battery Protection Module, ensure proper wiring and connections according to the manufacturer's instructions. Carefully set the parameters and adjustments based on your specific battery and application requirements to ensure optimal performance and protection.
