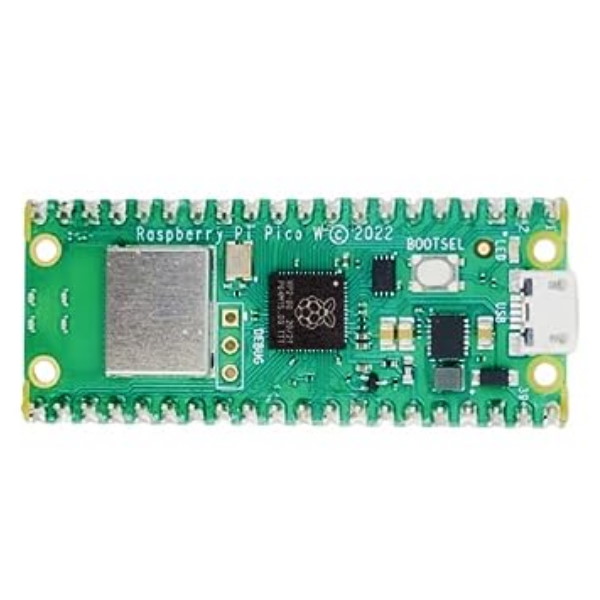

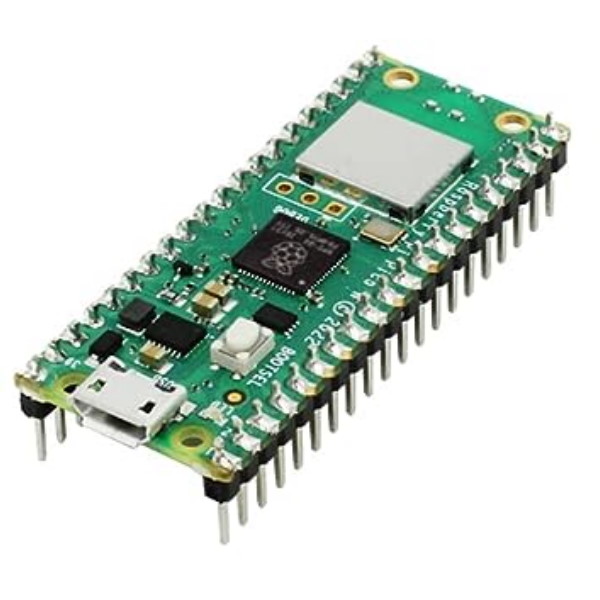

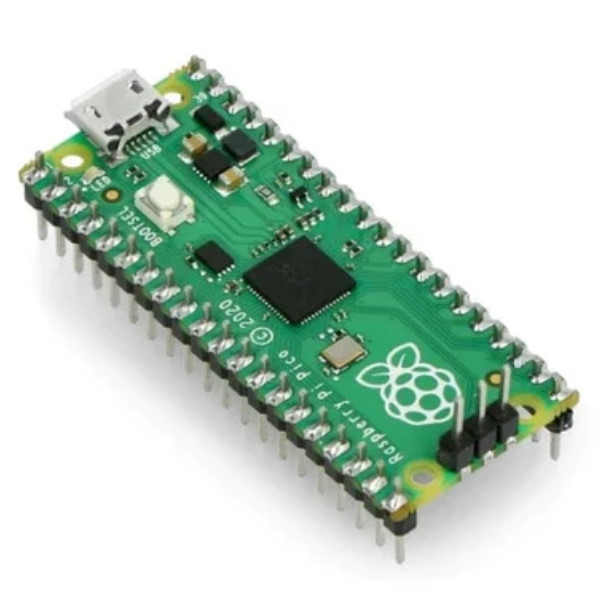

#12685: Raspberry PI Pico

R211.68

The Raspberry Pi Pico is an impressive microcontroller-class board developed by Raspberry Pi, designed to provide high performance, affordability, and ease of use for various microcontroller projects.

At the heart of the Pico is the RP2040 silicon platform, which boasts a range of powerful features. It includes a large on-chip memory, a symmetric dual-core processor complex, a deterministic bus fabric, and a rich set of peripherals. One of the standout features of the RP2040 is the unique Programmable I/O (PIO) subsystem, which offers exceptional power and flexibility for handling various tasks.

The Pico is a great choice for both professional users and hobbyists. With detailed documentation, a well-polished MicroPython port, and a UF2 bootloader built into the ROM, it provides a user-friendly and accessible platform for beginners. This ensures that even those with little experience in microcontrollers can quickly get started and explore its capabilities.

Manufactured on a modern 40nm process node, the RP2040 delivers high performance with low dynamic power consumption and leakage. It also offers various low-power modes, making it suitable for applications requiring extended-duration operation on battery power.

Key Specifications of Raspberry Pi Pico:

• Form Factor: 21 mm × 51 mm
• CPU: Dual-core Arm Cortex-M0+ @ 133MHz
• Memory: 264KB on-chip SRAM; 2MB on-board QSPI flash
• Interfacing: 26 GPIO pins, including 3 analogue inputs
• Peripherals:
  • 2 × UART
  • 2 × SPI controllers
  • 2 × I2C controllers
  • 16 × PWM channels
  • 1 × USB 1.1 controller and PHY, with host and device support
  • 8 × PIO state machines
• Input Power: 1.8–5.5V DC
• Operating Temperature: -20°C to +85°C

The Raspberry Pi Pico's compact form factor, powerful features, and extensive interfacing options make it an excellent choice for a wide range of applications, from simple microcontroller projects to more complex embedded systems. Its versatility and affordability have made it a popular choice in the microcontroller community.
