#1616: HC-SR501 Adjustable Pyroelectric Infrared (PIR) Motion Sensor Module
R60.20

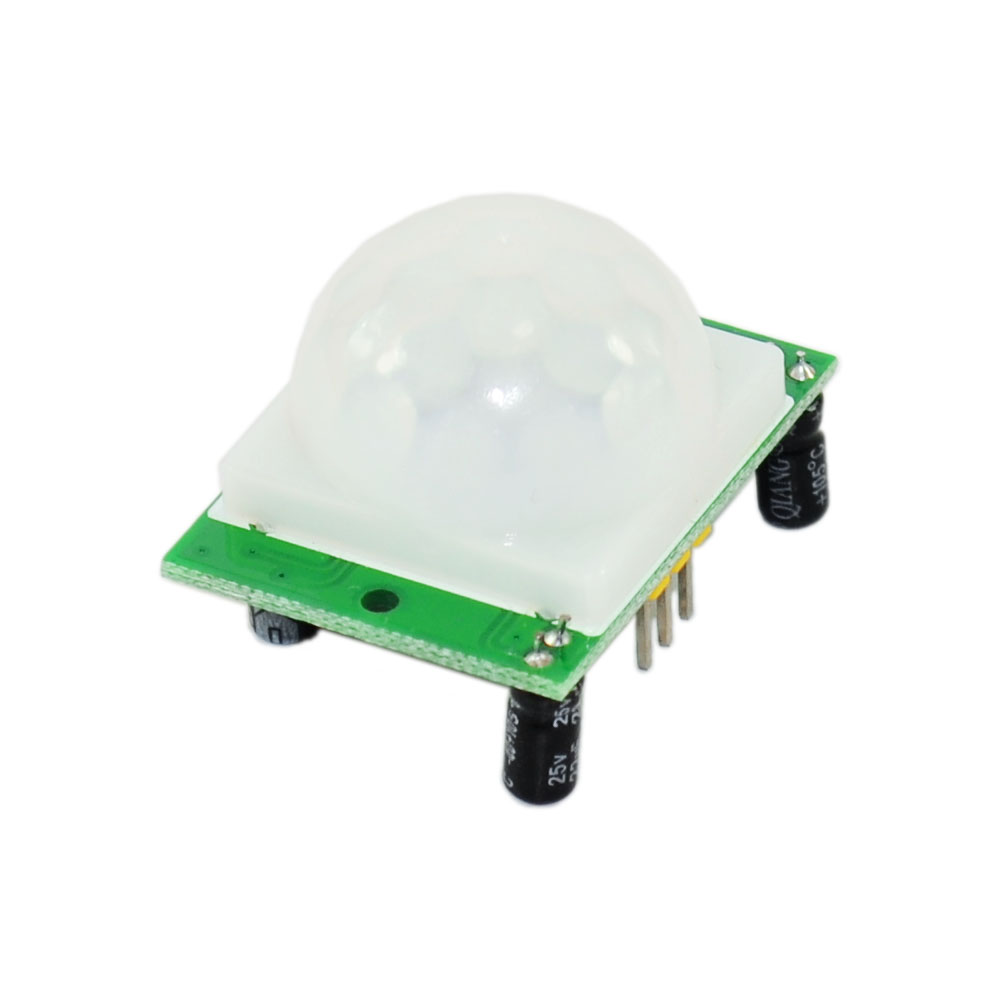

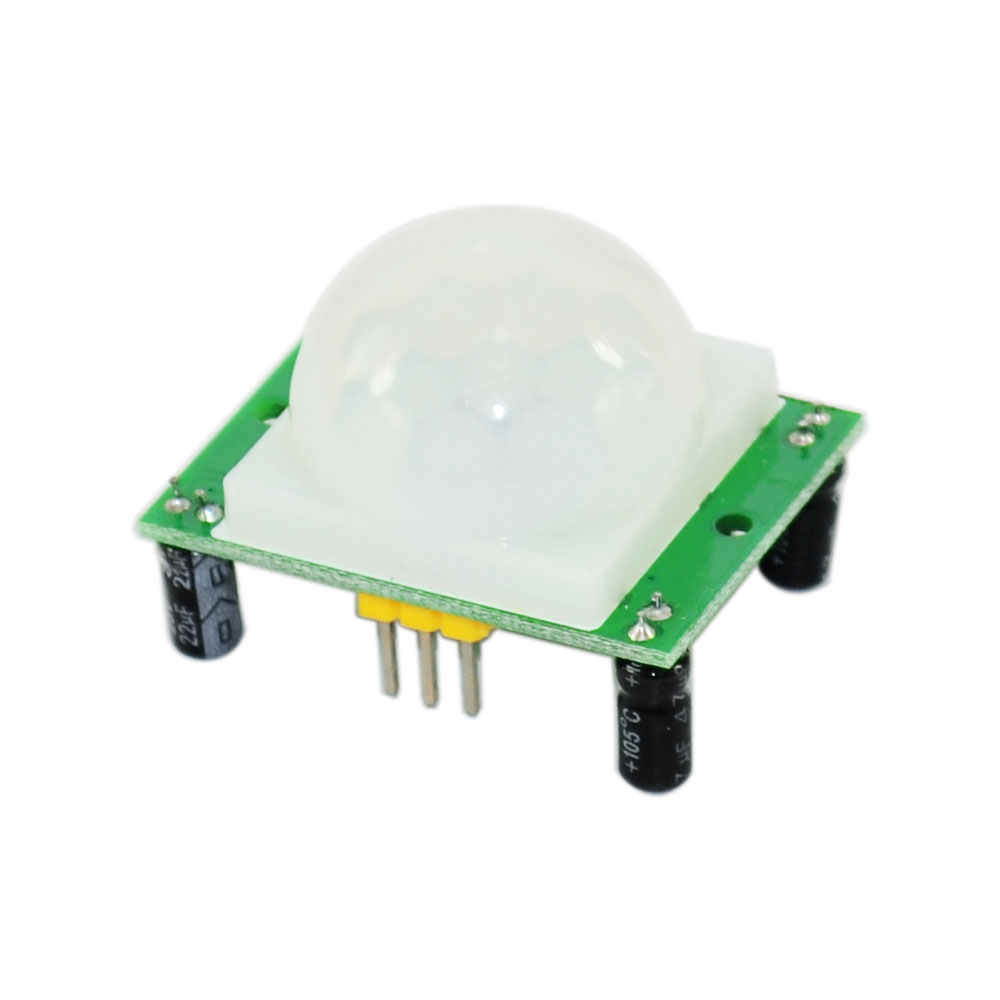

The HC-SR501 adjustable pyroelectric infrared (PIR) motion sensor module is a device that is used to detect motion using infrared (IR) signals. It is a widely used module that is commonly found in a variety of applications, including security systems, home automation systems, and other applications that require the detection of motion.

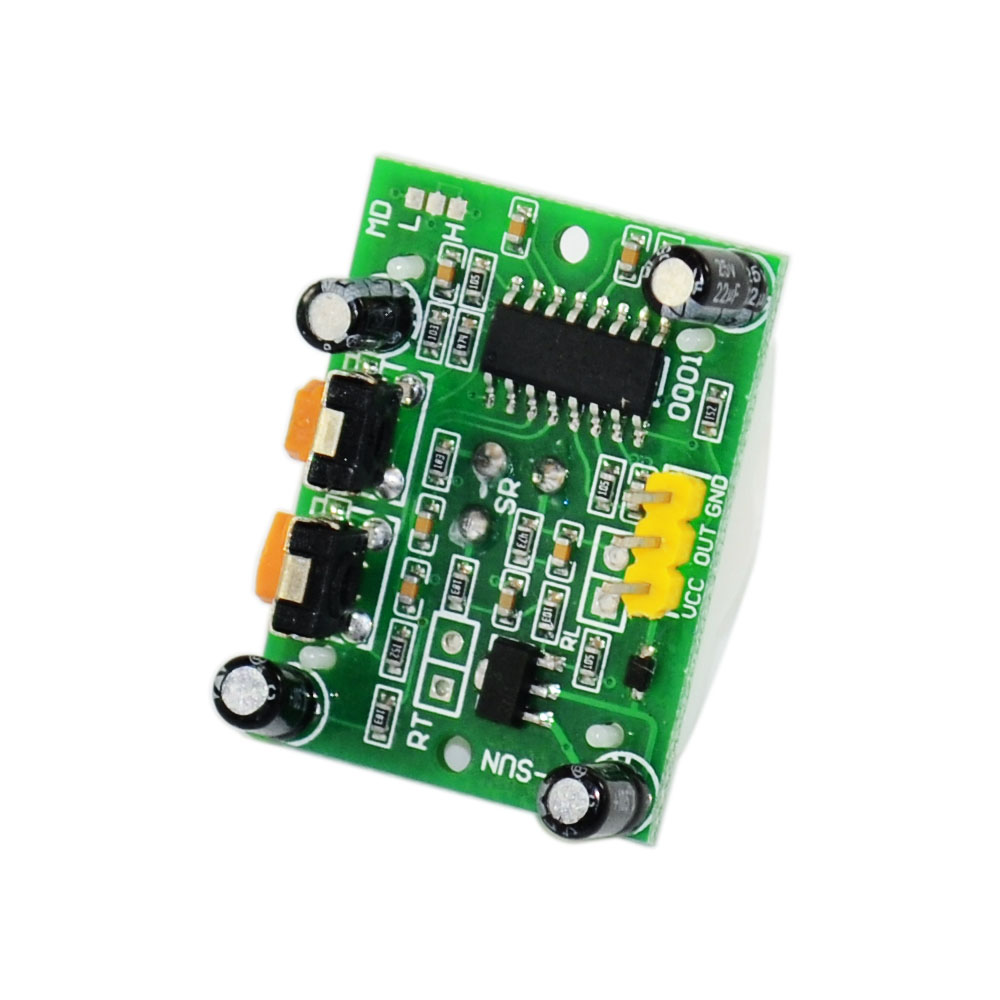

The HC-SR501 module consists of a pyroelectric sensor that is able to detect the presence of a moving object by sensing changes in the level of infrared radiation in the environment. It is able to detect motion over a wide range of distances and angles, and it has an adjustable sensitivity level that can be set using an onboard potentiometer.
The HC-SR501 module is a reliable and widely used motion sensor that is easy to use and integrate into a variety of projects. It is often used in combination with other electronic components, such as microcontrollers and alarms, to build motion detection systems and devices.
Product Details
-
Product Type: HC--SR501 Body Sensor Module
-
Operating voltage range: DC 4.5-20V
-
Quiescent Current: <50uA
-
Level output: High 3.3 V /Low 0V
-
Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
-
Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
-
Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds
-
Board Dimensions: 32mm*24mm
-
Angle Sensor: <100 ° cone angle
-
Operation Temp: -15-+70 degrees
-
Lens size sensor: Diameter:23mm(Default)

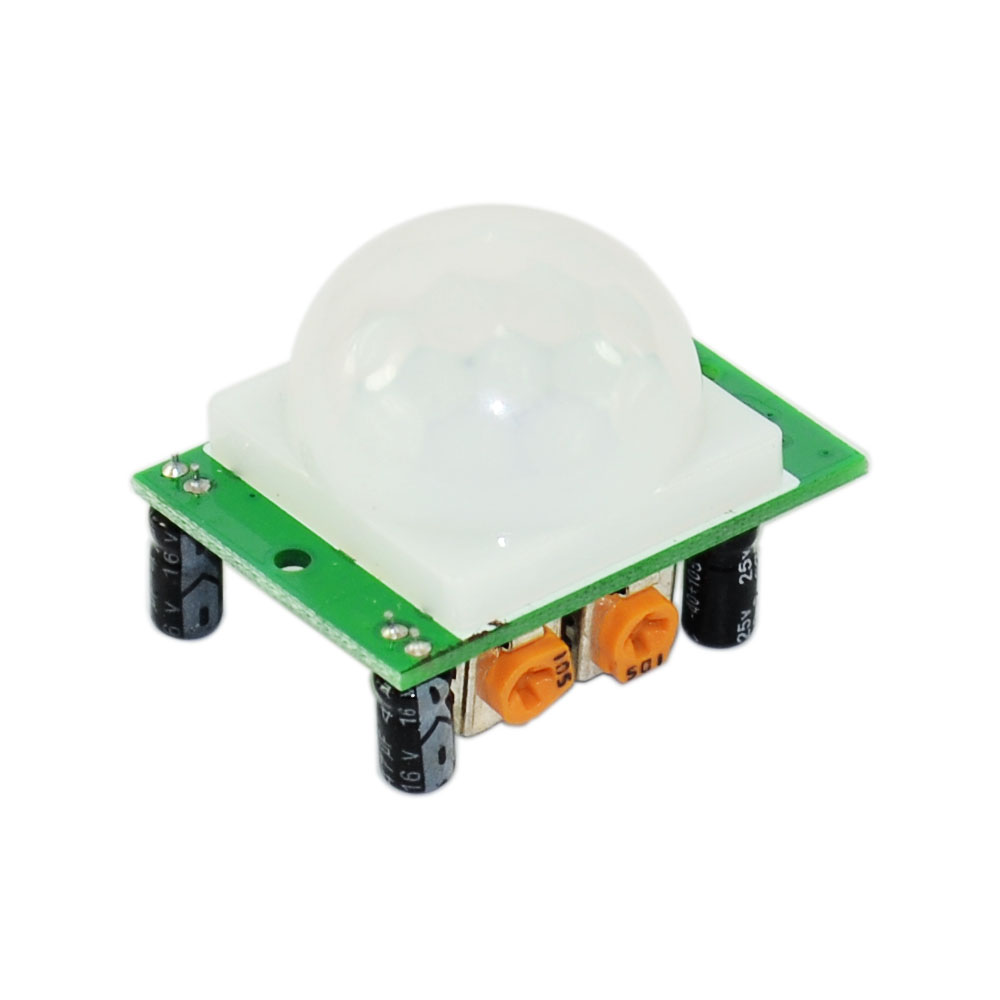

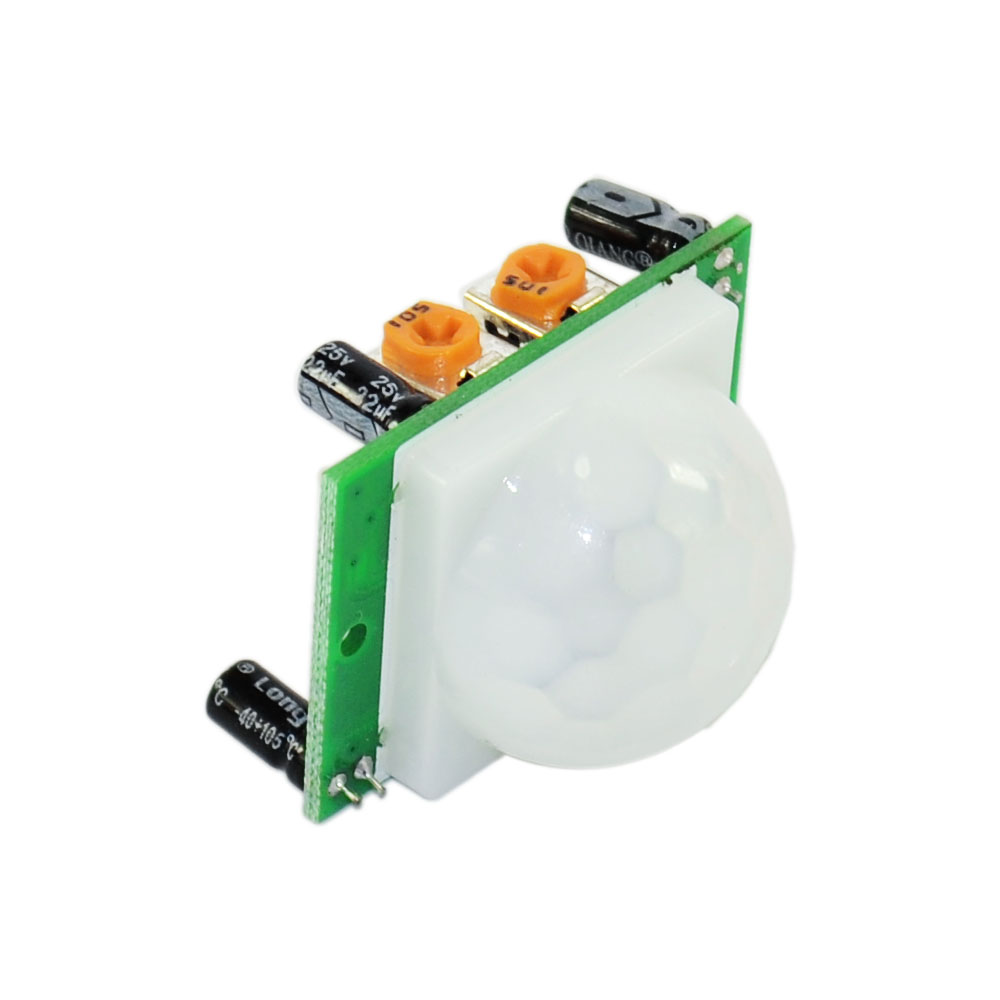

Note: The potentiometer clockwise to adjust the distance, sensing range increases (about 7 meters), on the contrary,
sensing range decreases (about 3 meters).Delay adjustment potentiometer clockwise rotation, sensor delay longer (about 300S),
the other hand, induction by the short delay (about 5S).
