R158.76
The YZC-131 is a load cell sensor that is used to measure weight or force. It is a strain gauge based sensor that converts the applied force into an electrical signal, which can then be measured and interpreted by a suitable instrument or device. The YZC-131 has a rated output of 5 to 10V and can measure loads in the range of 5kg. It is commonly used in a variety of applications, including weighing scales, force gauges, and load cells.
Use this load cell to build your own scale and determine the mass of objects.
Product featuresRated Load: 5KgProtection class: IP65

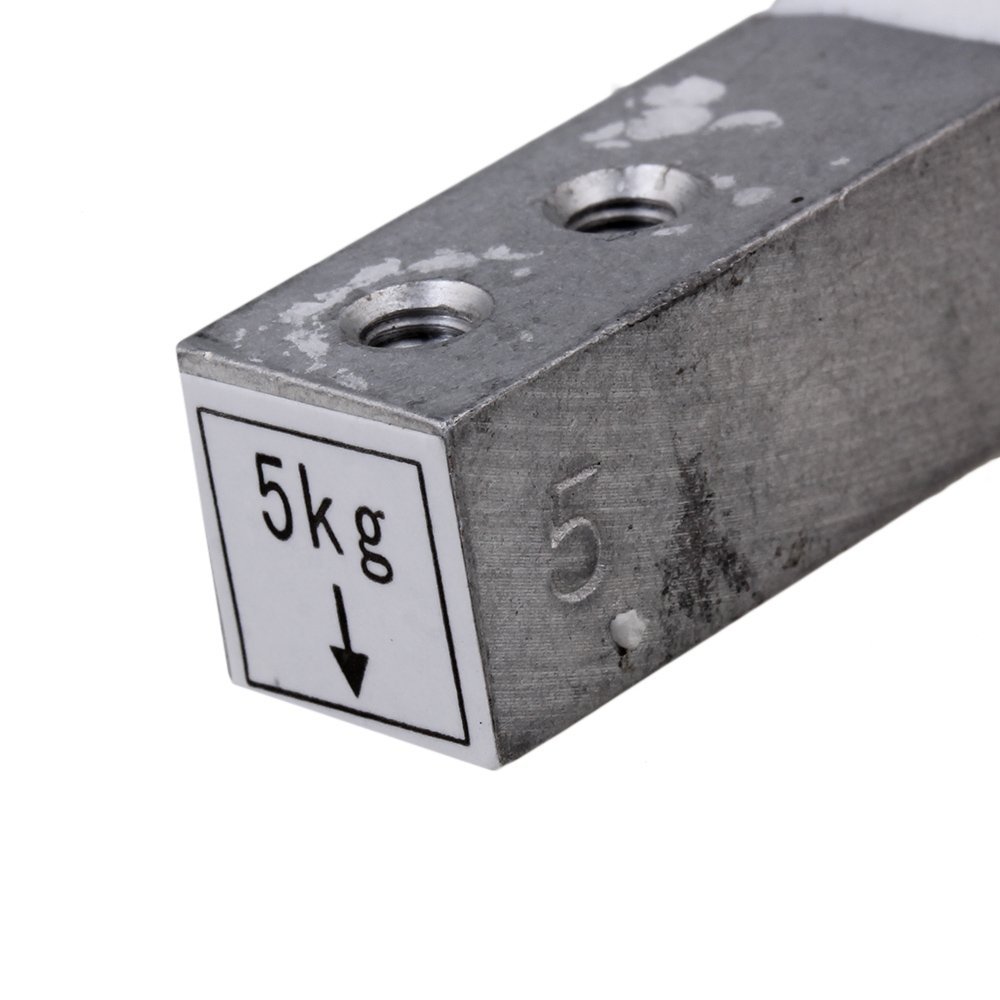

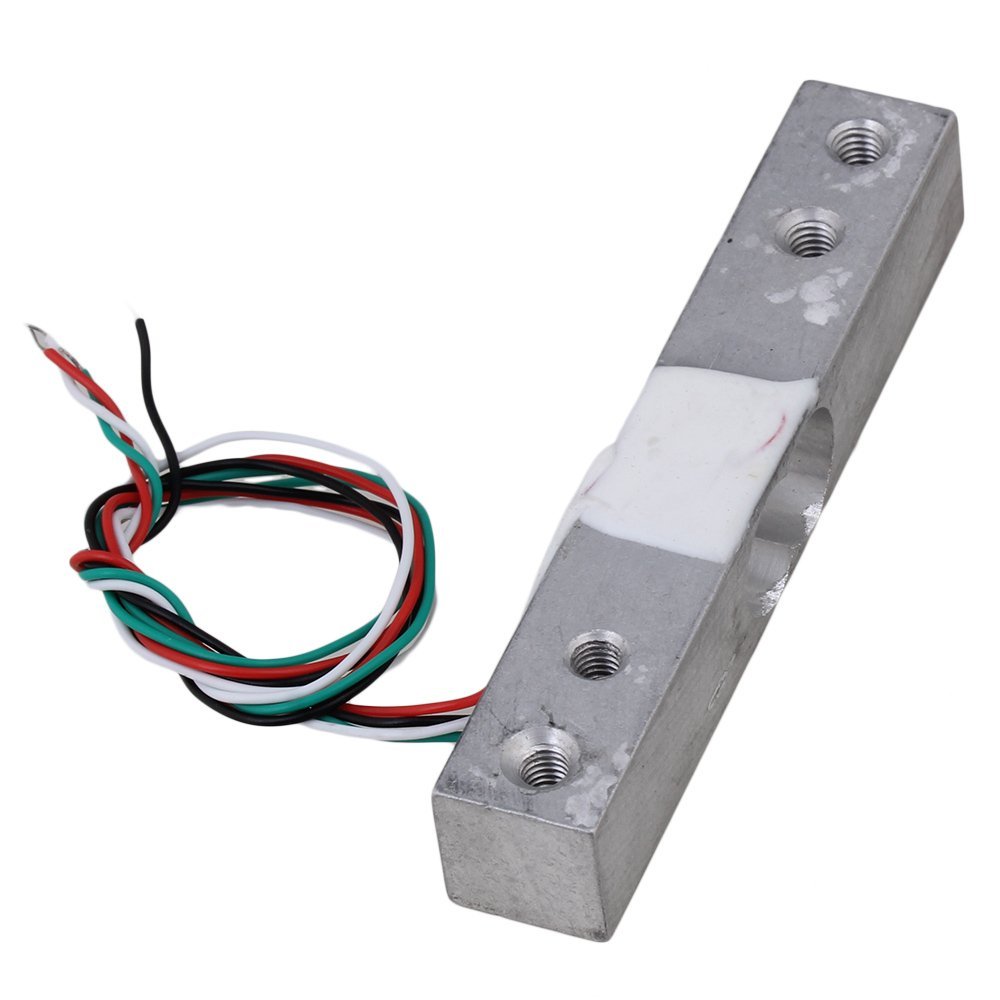

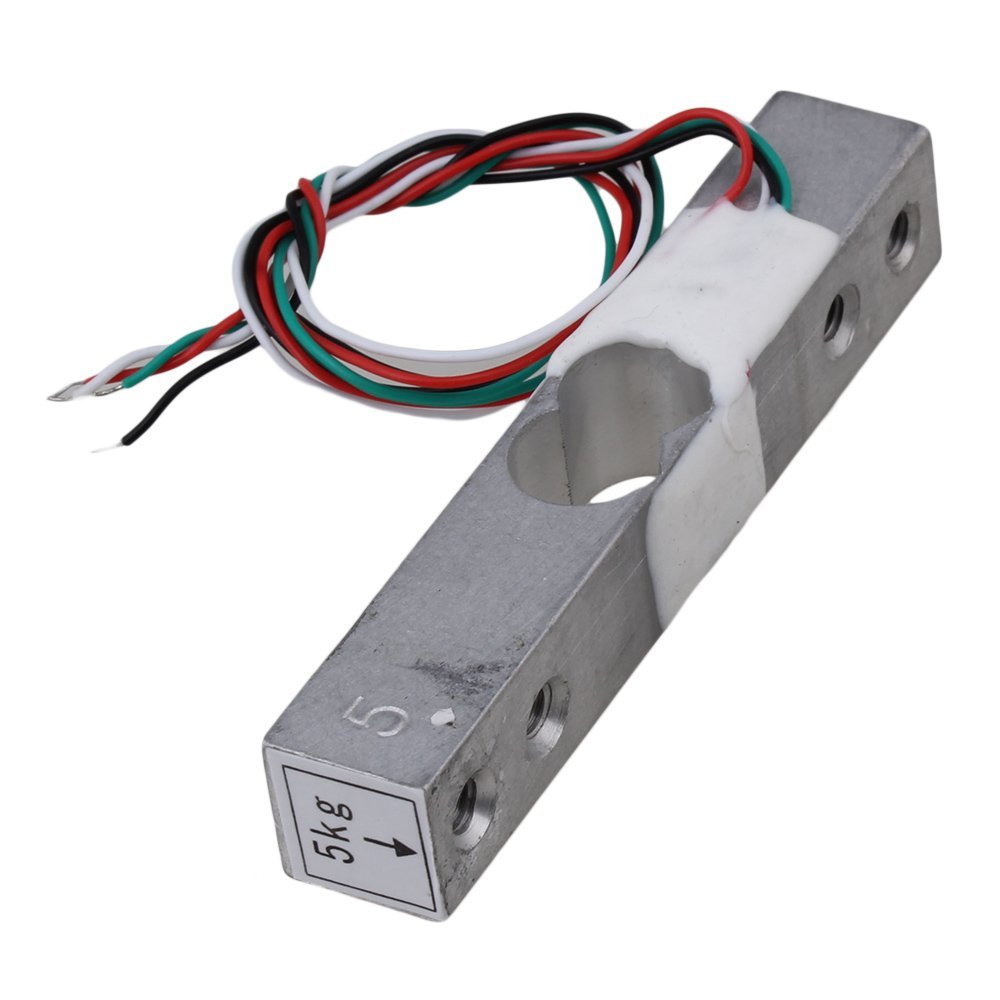

Weighing Load Cell Sensor 5Kg for Electronic Scale (YZC-131)

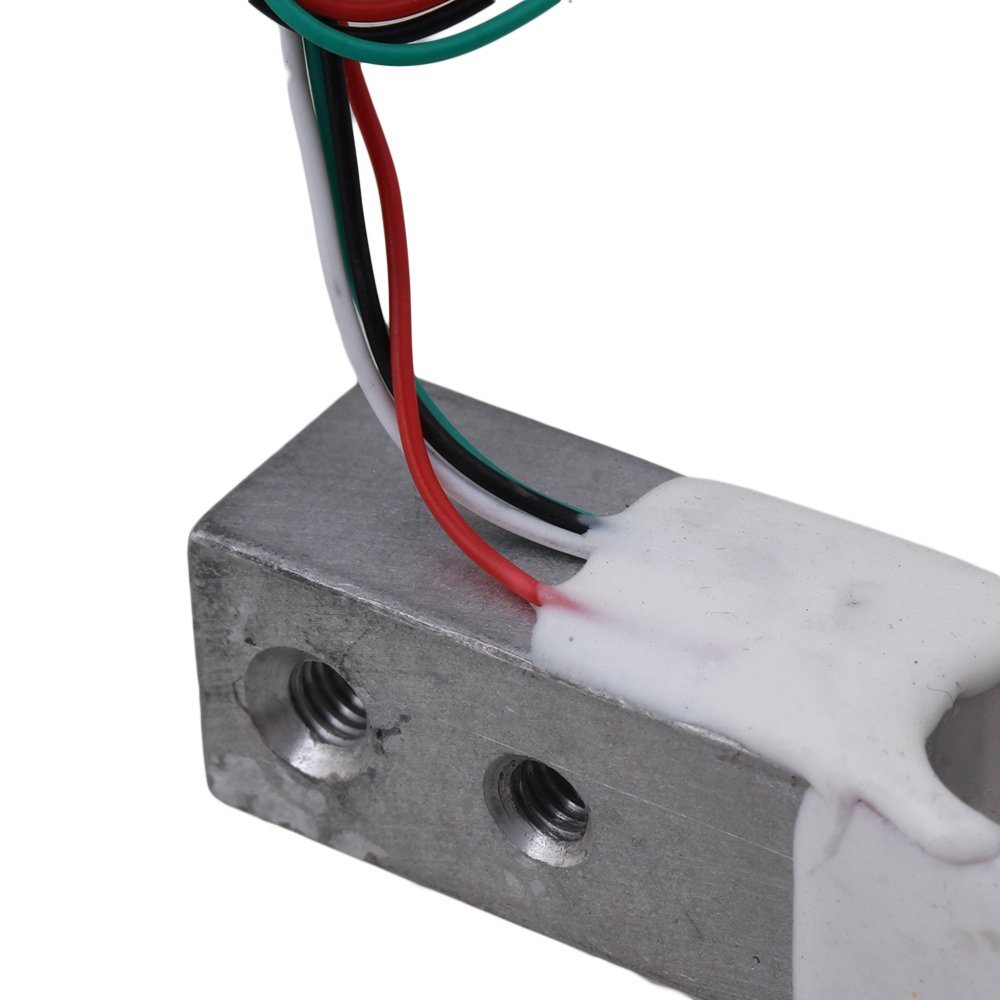

Product descriptionNote: The color of the item may vary slightly due to photography and your own computerWiring: Red line voltage positive, Black line voltage negativeWhite Line signal positive, Green line signal negative Rated Load: 5KgRated Output: 1.0 to positive and negative 0.1mV or V Nonlinear: 0.03 percent F.S Hysteresis: 0.03 percent F.S Repeatability: 0.03 percent F.SCreep(5 minutes): 0.05 percent F.S Output temperature: 0.003 percent F.S or degree celsiusZero temperature: 0.02 percent F.S or degree celsiusZero balance: positive and negative 0.1000 mV or V Input impedance: 1066 positive and negative 20 percent ohmOutput impedance: 1000 positive and negative 10 percent ohmInsulation Resistance: 2000 MegohmsOperating temperature range: minus 20 to 65 degree celsiusRecommended operating voltage: 5 VDC Maximum operating voltage: 10 VDC Protection class: IP65Material: Aluminum AlloySize: 75 x 13 x 13mm or 2.95 x 0.51 x 0.51 inchWeight: 30g
N/A
