#12673: AD9850 DDS Signal Generator Module

R831.60

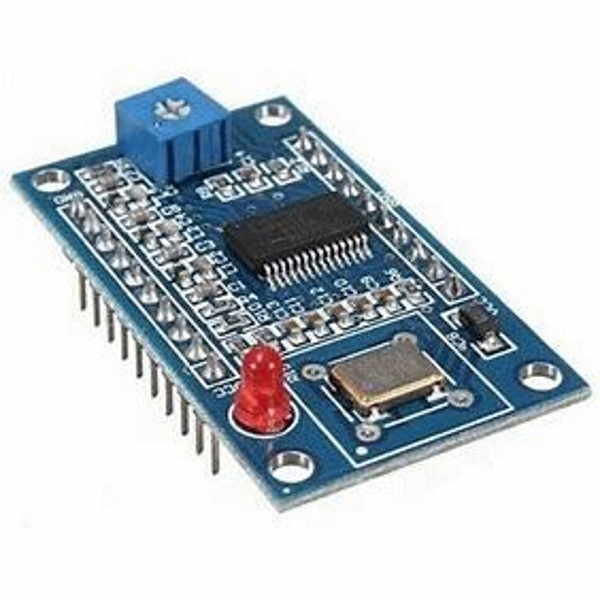

The AD9850 DDS Signal Generator Module is a versatile and powerful tool used in various electronic projects to produce square and sine waves. It is based on the AD9850 IC, a Direct Digital Synthesizer (DDS) with a crystal oscillator to provide clock and timing control for generating precise analog signal waves.

Key Features and Specifications of the AD9850 DDS Signal Generator Module:

1. Operating Voltage: The module can operate within a voltage range of 3.3 to 6 volts, making it suitable for a wide range of power supply configurations.

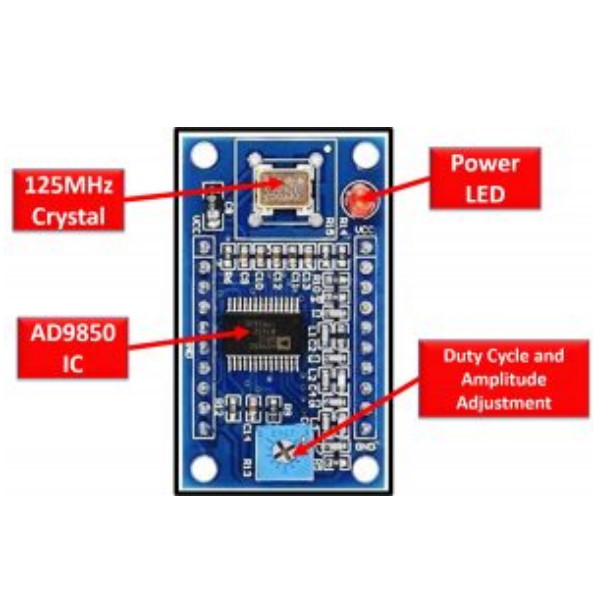

2. Oscillator Frequency: It has a powerful crystal oscillator with a frequency of 125 MHz, which allows for precise signal generation.

3. Output Frequency: The module can generate analog signals with frequencies ranging from 0 to 40 MHz, providing flexibility in signal generation.

4. Operational Temperature: It can be operated in a wide temperature range from -40 to 85 degrees Celsius, making it suitable for industrial applications.

5. Source/Sink Continuous Current: The module can source and sink a continuous current of up to 0.005 Amperes, enabling it to drive external loads.

6. DAC Current: The integrated DAC (Digital-to-Analog Converter) in the AD9850 IC can handle a current of up to 0.03 Amperes, ensuring accurate signal generation.

7. Power Dissipation: The power dissipation of the module depends on the power supply voltage and frequency, with values ranging from 110 mWatts to 380 mWatts.

8. Spurious Free Dynamic Range (SFDR): The DDS generator provides a high SFDR, which ensures a high-quality output signal with minimal unwanted artifacts.

9. Power-Down Function: The module includes a power-down function to reduce boot time and save power when not in use.

10. Data Transmission: Data can be transmitted to the module either in parallel or serial format, providing flexibility in interfacing with other devices.

11. Multiple Signal Outputs: The module offers four analog signal outputs, including two sine-wave outputs and two square-wave outputs.

12. Comparator: A comparator is integrated to reduce jitter in the square-wave output, resulting in a cleaner and more stable waveform.

13. CMOS Technology: The Direct Digital Synthesizer is based on CMOS technology, which enhances its performance and functionality.

14. Surface-Mount Package: The module is designed with a surface-mount package, ensuring compact size and high-performance operation.

In summary, the AD9850 DDS Signal Generator Module is a versatile and high-performance tool for generating precise square and sine waves. Its wide operating voltage range, multiple signal outputs, and excellent SFDR make it suitable for a variety of applications, including industrial projects, test equipment, and communication systems.
