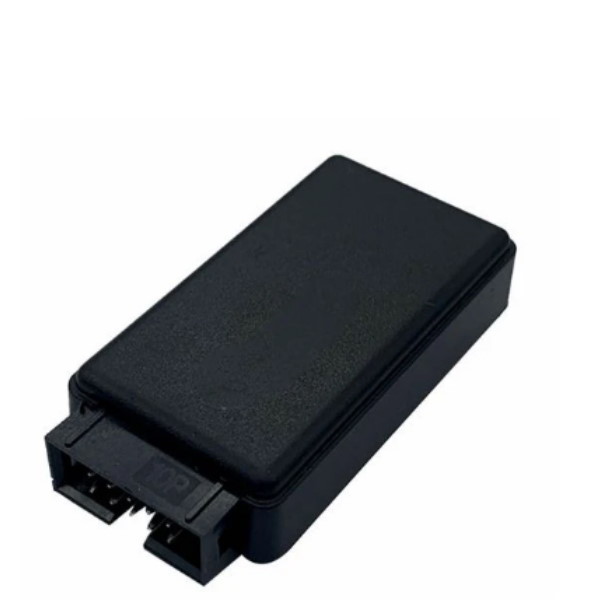

#12665: USB Logic Analyzer (24Mhz, 8-Channel)

R491.40


The USB Logic Analyzer is a powerful and versatile tool that allows users to analyze digital signals in real-time. It is particularly useful for debugging and analyzing communication protocols such as UART, I2C, SPI, and more. With its ability to visualize data in human-readable language, it becomes an essential tool for both electronics experts and beginners.

Key Features and Benefits:

  1. High Sampling Speed: The logic analyzer supports a sampling speed of up to 24MHz, enabling it to capture and analyze high-speed digital signals accurately.

  2. 8-Channel Input: With 8 channels, the logic analyzer can collect data from multiple sources simultaneously, providing comprehensive insights into complex communication systems.

  3. Signal Analysis: The logic analyzer is equipped with the capability to analyze various communication protocols, including I2C, UART, and others, allowing users to interpret the data in a meaningful and readable format.

  4. Large Sample Capacity: The device can sample up to 10 billion data points, ensuring that even the most elusive events and data patterns can be captured and analyzed.

  5. Compatibility: The logic analyzer works with both 3.3V and 5V systems, making it suitable for a wide range of electronic projects and devices. The input voltage range accommodates up to 5.25V maximum and 2.0V minimum for high logic levels.

  6. Overvoltage Protection: The device is equipped with overvoltage protection, ensuring safe and reliable operation even in cases of voltage fluctuations or spikes.

  7. Powered via USB: The logic analyzer is powered via an included mini-B USB cable, making it easy to use with various devices, including laptops and computers.

  8. Open-Source Software Support: The logic analyzer works with sigrok, an open-source, cross-platform signal analysis software suite. This allows users to access a wide range of analysis tools and features to enhance their data interpretation capabilities.

  9. Learning Aid: The USB Logic Analyzer can be an excellent learning aid for newcomers to electronics, as it allows them to visually see, read, and understand how different communication protocols work and interact.

In summary, the USB Logic Analyzer with its high sampling speed, multi-channel input, and signal analysis capabilities is a valuable tool for electronics enthusiasts, hobbyists, and professionals alike. Whether you are debugging communication protocols, identifying faults in electronic systems, or learning about digital signal analysis, this logic analyzer proves to be an indispensable companion. Its user-friendly interface and compatibility with sigrok software make it accessible to both beginners and experienced users, making digital signal analysis more accessible and insightful.

Product Details

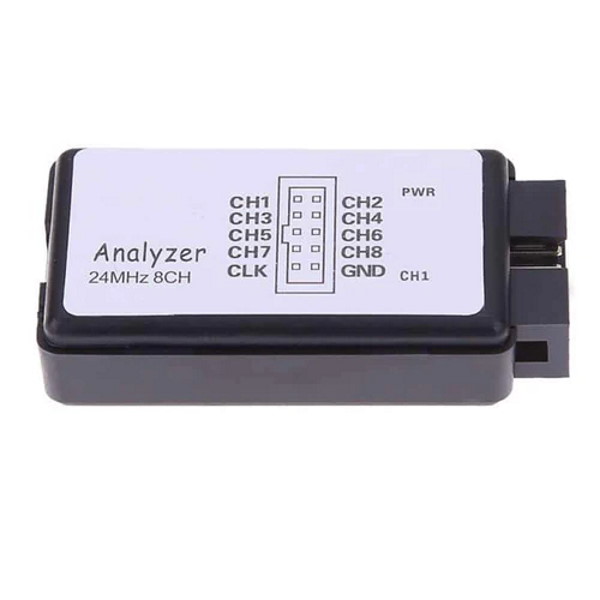

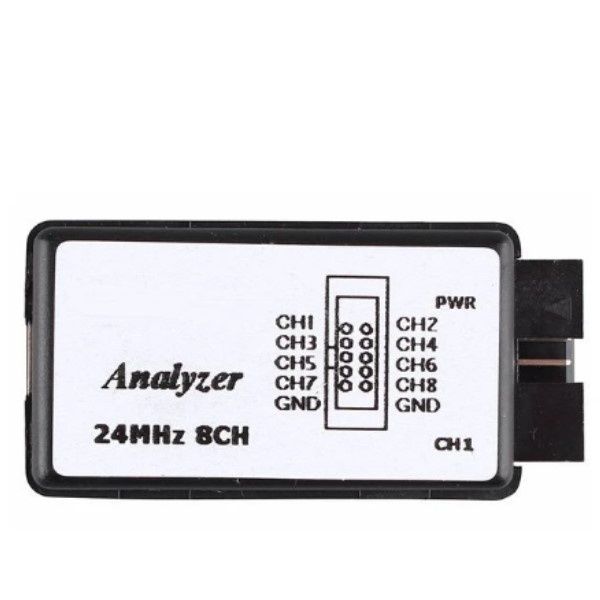

8 channels can gather at the same time, so as to signal analyze, such as UART.
The logic for each channel sampling speed up to 24M/s.
General applications around 10M, enough to cope with a variety ofoccasions.
Large quantity sample collection, strong and powerful.
Equipped with overpressure protection, for safety working.
Sampling rate can be set as below: 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
Data upload real time, with depth collection, far from practical need.
Support WIN7(32 and 64), 2K, XP, LINUX.
