#12674: USB Type A Female Breakout Module

R15.75

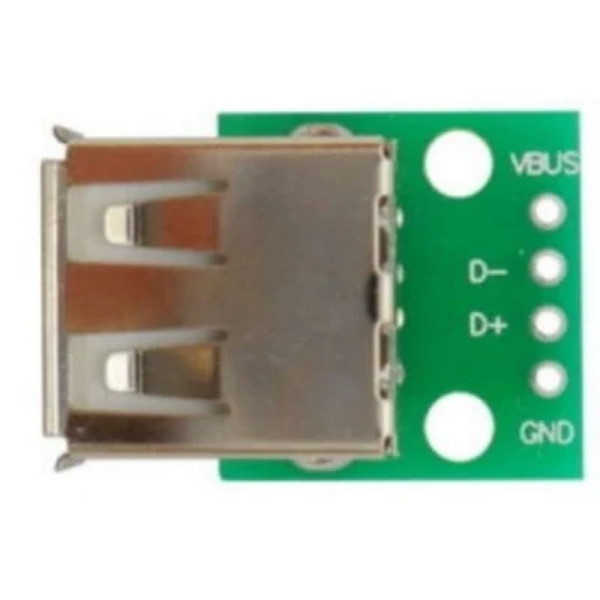

The USB Type A Female Breakout Module is a useful breakout board that provides USB functionality to microcontrollers or serves as a power connection for charging via USB. It is designed to simplify the process of incorporating USB capabilities into a project or prototype. The board features a USB Type A female connector, commonly used for USB connections.

Key Features of the USB Type A Female Breakout Module:

1. USB Type A Connector: The board comes with a standard USB Type A female socket, which is a widely used connector for USB devices.

2. 4-Pin Design: The breakout board has 4 pins broken out from the USB connector, including VBUS (5V power), D+ (data positive), D- (data negative), and GND (ground).

3. Labeled Pins: The pins are clearly labeled on the PCB (Printed Circuit Board), making it easy to identify and connect the necessary wires or components.

4. DIP 2.54mm Header: The 4 pins are broken out to a DIP (Dual In-line Package) 2.54mm header, which is a common pitch used on breadboards and other prototyping platforms. This allows for easy integration with microcontrollers or other circuit components.

5. Versatile Applications: The breakout board can be paired with microcontrollers that support USB communication, providing USB connectivity to the project. Additionally, it can serve as a power supply for DIY USB projects, USB-powered breadboard designs, or any application requiring a USB Type A female socket.

Overall, the USB Type A Female Breakout Module is a handy tool for electronics enthusiasts, hobbyists, and engineers who want to add USB functionality or power supply capabilities to their projects. Its simplicity and clear pin labeling make it easy to use, making it an ideal choice for various DIY electronics applications.
