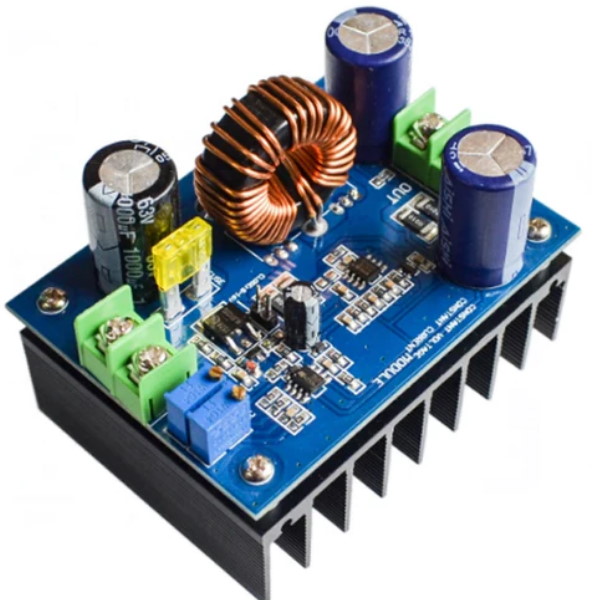

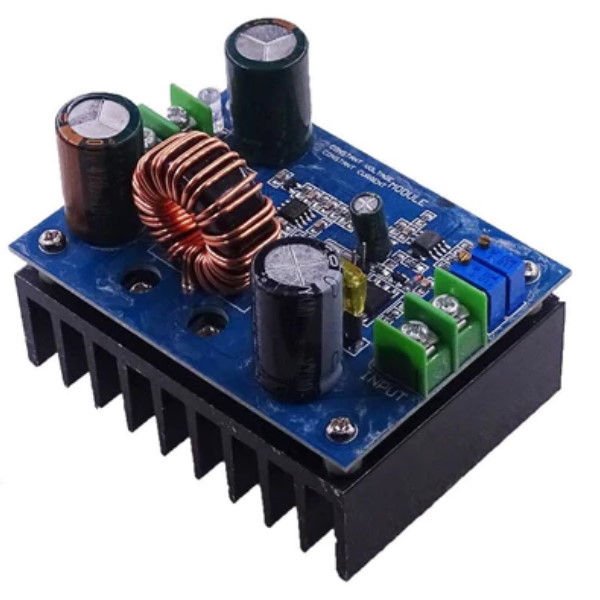

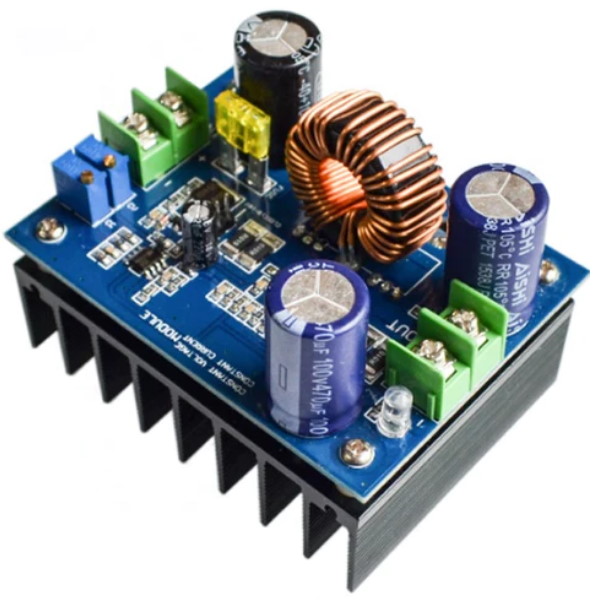

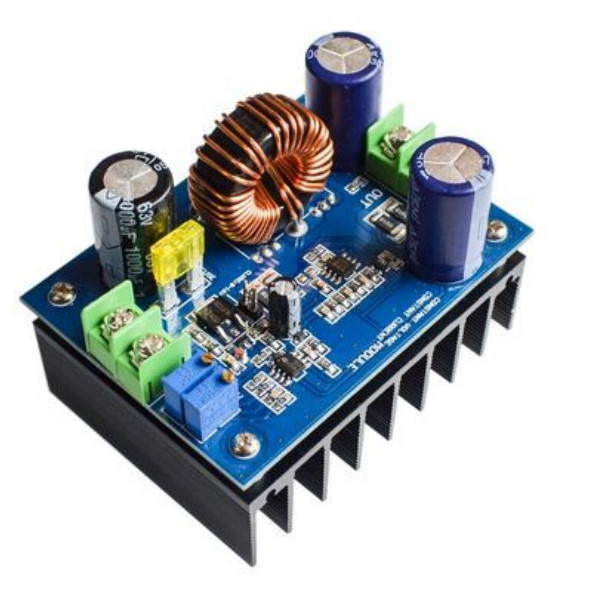

#12697: 600W Step-up Boost power module (12V-60V to 12V-80V, Constant Current, Constant Voltage)

R491.40

The 600W Step-up Boost Power Module is a versatile and efficient device that allows you to increase the voltage output from a lower voltage source. It serves as an excellent DIY power supply solution, where the input voltage can range from 12V to 60V, and the module can boost it to a continuously adjustable output voltage between 12V and 80V. This flexibility makes it suitable for a wide range of applications, especially when you need to power high-voltage devices from a low-voltage source.

The module comes with a maximum input current of 15A, ensuring it can handle substantial power requirements. It also provides an adjustable output current feature, with a maximum output current of 10A. This means you can control the current draw and limit it to protect your circuit from receiving excessive voltage.

The output power (P) of the module can be calculated as the product of the input voltage (V) and the output current (10A). The conversion efficiency of this step-up module is up to 95%, ensuring efficient power conversion from the input to the output.

For safety, the module is equipped with short-circuit protection, featuring a 20A fuse on the input side. This double short-circuit protection helps safeguard the module and connected devices from potential damage due to short circuits.

The module operates at a frequency of 150KHz, providing stable performance and ensuring reliable operation. It has a wide operating temperature range of -40°C to +85°C, making it suitable for use in various environmental conditions. To ensure optimal performance, it is recommended to strengthen the heat dissipation if the ambient temperature is too high.

Overall, the 600W Step-up Boost Power Module is a powerful and adaptable solution for boosting the voltage output, making it a valuable tool for various electronic projects and applications. Its adjustable output voltage and current, along with the high conversion efficiency and safety features, make it an ideal choice for powering up devices that require higher voltages from a lower-voltage power source.
