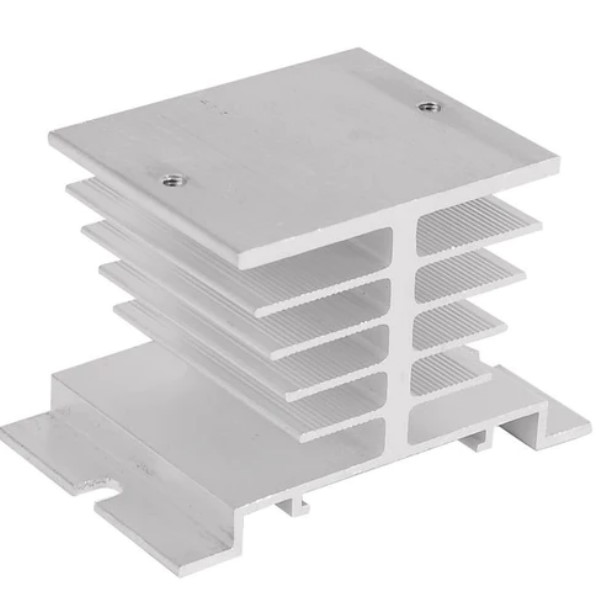

#12737: SSR Relay Heatsink

R75.60

An SSR (Solid State Relay) heatsink is a cooling component designed to dissipate heat generated by a solid-state relay, ensuring proper functioning and preventing overheating. Fotek SSR relays are commonly used in various applications, such as switching high-power electrical devices, and they can generate heat during operation. To prevent excessive heat buildup and maintain optimal performance, a heatsink is often employed.

Key points about an SSR relay heatsink:

1. Function: The main purpose of an SSR relay heatsink is to dissipate heat generated by the solid-state relay. Heat is produced due to the current passing through the relay's semiconductor components.

2. Compatibility: The SSR relay heatsink you mentioned is specifically designed to fit Fotek SSR relays. This ensures a proper fit and efficient heat transfer.

3. Mounting Options: The heatsink can be used in different mounting configurations. It may be designed for direct attachment to the SSR relay or for mounting on a DIN rail, which is a standardized mounting rail used in industrial control applications.

4. Heat Dissipation: The heatsink's design and materials are optimized for effective heat dissipation. It usually features fins or other heat-dissipating elements that increase the surface area exposed to the surrounding air, facilitating cooling.

5. Temperature Regulation: A heatsink helps regulate the operating temperature of the SSR relay, preventing overheating that could lead to reduced lifespan or malfunction.

6. Application: Heatsinks are commonly used in industrial and commercial setups where solid-state relays are employed. These relays are often used for controlling heaters, motors, lighting, and other high-power devices.

7. Installation: Proper installation of the SSR relay heatsink is crucial for efficient heat transfer. It should be securely mounted to the SSR relay or DIN rail and in a way that allows for effective airflow around the heatsink.

It's important to select a heatsink that is appropriate for the specific SSR relay model and the application's heat dissipation requirements. Using a compatible and properly sized heatsink helps ensure the reliable and safe operation of the SSR relay while extending its lifespan.
