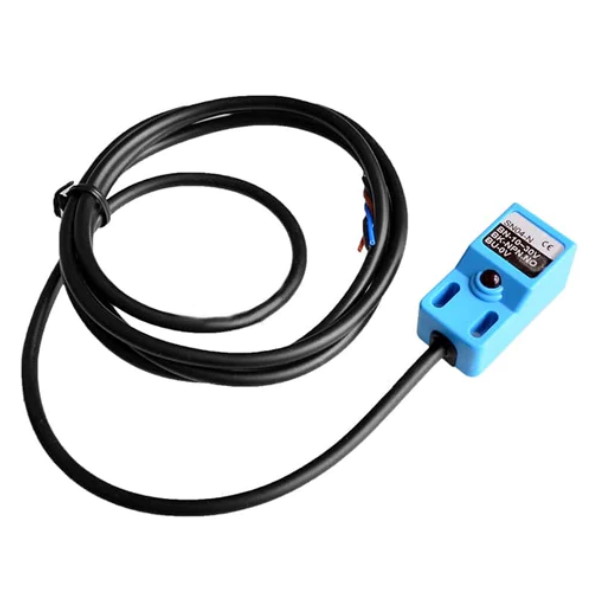

#12687: Inductive Proximity Switch (6V - 36V DC)

R151.20

The Inductive Proximity Switch is a reliable sensor that can detect the presence of metallic objects within a range of 5mm. It operates with a supply voltage ranging from 6V to 36V DC and is controlled by a digital input signal of 5V. The switch is of the proximity type, which means it can detect metallic objects without physical contact, making it suitable for various applications.

Key Specifications:

• Supply Voltage: 6 - 36V DC
• Controlled By: Digital Input (5V)
• Sensor Type: Proximity (Inductive)
• Sensor Output Switch Type: Normally Open
• Detecting Distance Max: 5 mm
• Current Consumption Max: 5 mA
• Cable Length: 1 m
• Material: ABS Plastic
• Operating Indicator: Red LED
• IP Rating: IP67 (waterproof and dustproof)
• Operating Temperature: -25 - 75 °C

Features:

1. Detection Range: The sensor can detect metallic objects within a maximum distance of 5mm. However, the actual detection distance may vary depending on the shape, size, and type of metal.

2. LED Indicator: The proximity switch is equipped with a red LED indicator. The LED turns on when the sensor is powered, and its brightness increases when a metallic object is detected, providing a visual indication of its operation.

3. High Sensitivity and Reliability: The switch uses high-frequency oscillation to quickly send a detection signal, ensuring high sensitivity and reliable performance. It is designed to have good anti-jamming capabilities and stable operation.

4. Sealed and Durable Design: The proximity switch is fully sealed with resin, making it resistant to vibration, corrosion, and waterproof. Its rugged construction ensures long-lasting service life even in harsh environments.

The Inductive Proximity Switch is a versatile and practical sensor used in various industrial, automation, and control applications where the presence of metallic objects needs to be detected accurately and reliably.
