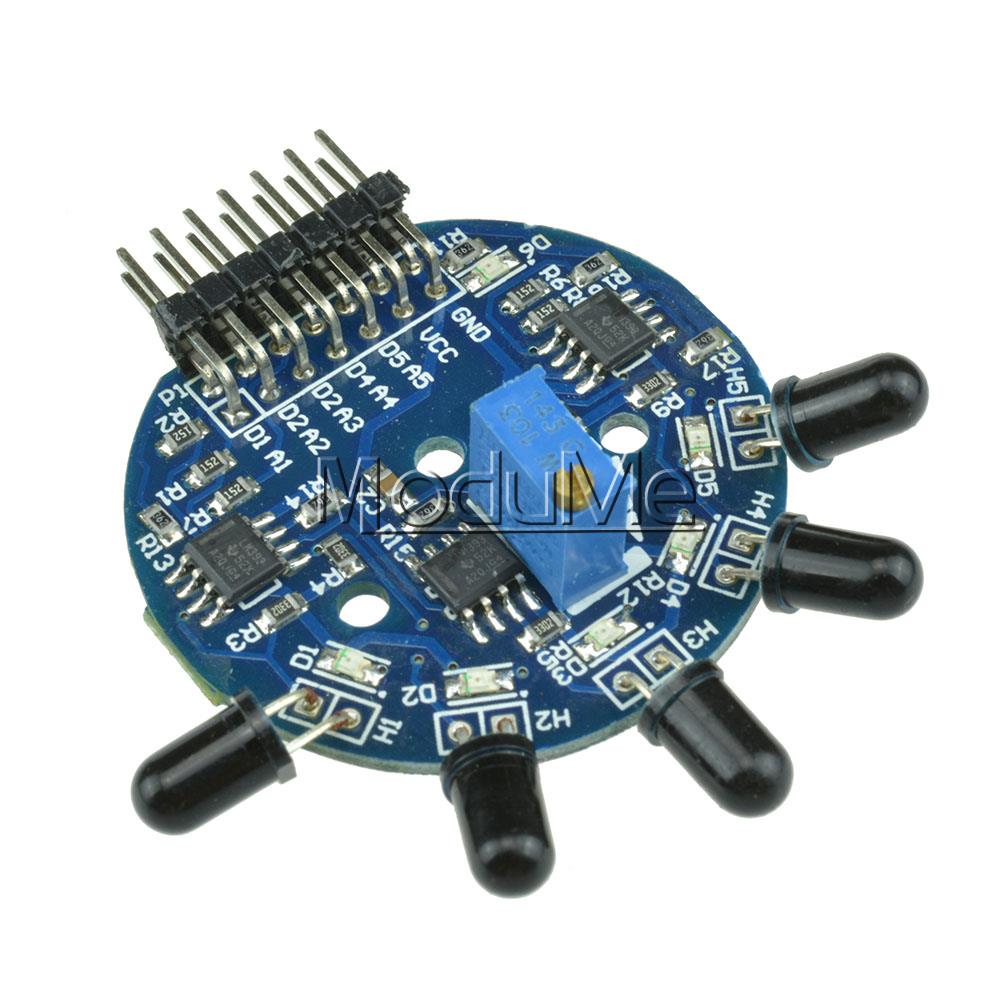

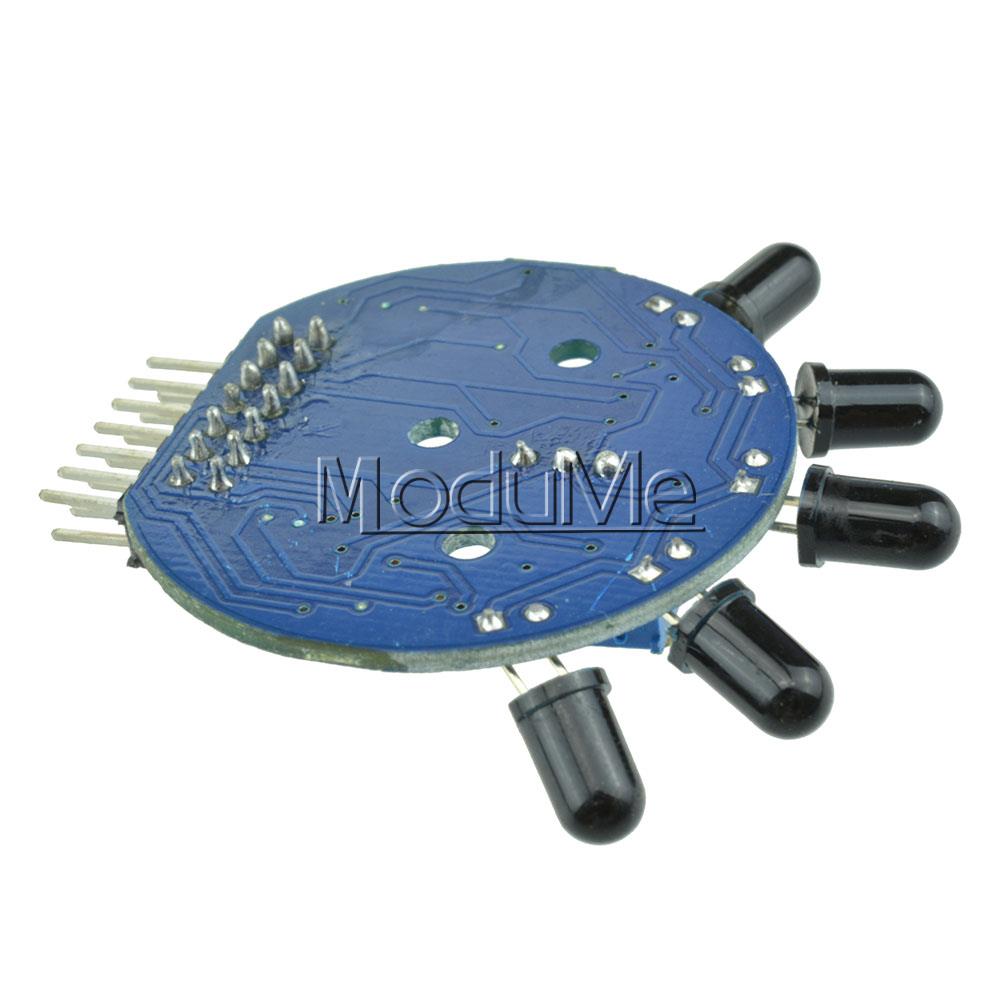

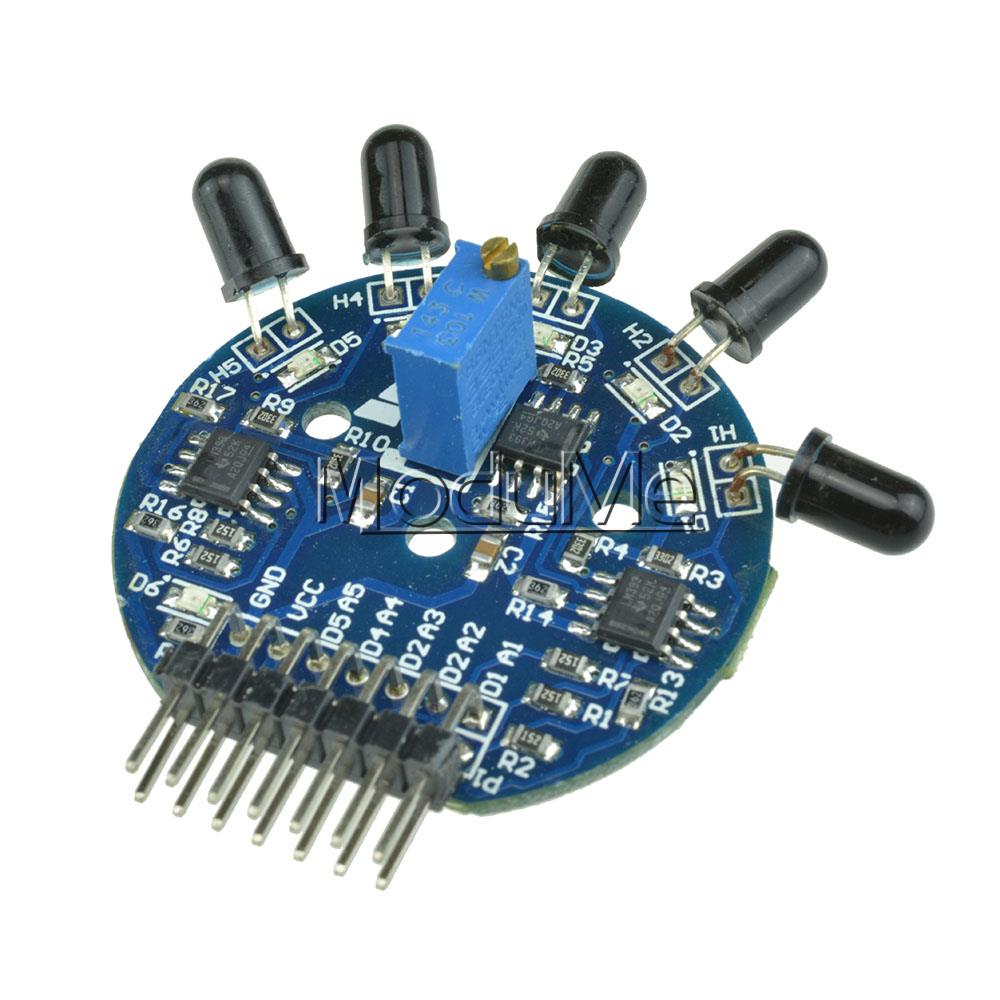

5 Way Flame/Heat Sensor Module
  • 5 Way Flame/Heat Sensor Module
  • 5 Way Flame/Heat Sensor Module
  • 5 Way Flame/Heat Sensor Module
  • 5 Way Flame/Heat Sensor Module

#2693: 5 Way Flame/Heat Sensor Module

R86.00


A 5 way flame/heat sensor module is a device that is used to detect the presence of a flame or heat source in a surrounding environment. It consists of a sensor element and a signal processing circuit that is designed to detect the intensity and wavelength of the radiation emitted by a flame or heat source. The sensor element is typically a pyroelectric infrared (PIR) sensor or a thermopile sensor, which are sensitive to the changes in temperature and radiation that are associated with a flame or heat source. The signal processing circuit converts the sensor output into a digital signal that can be read by a microcontroller or other electronic device. The module typically has multiple output options, such as a digital output (high or low) or an analog output (voltage or current), which can be used to trigger an alarm or control other devices.


 Five channel flame sensor design, wide range of detection
   (the detection range of the ordinary single flame  sensor is probably about 30°,
   as the distance increases, the range is gradually reduced,
    the detection range of the product is greater than 120°)
2. Able to output a digital signal (high and low), easy to use
3. Able to output an analog signal (voltage signal),
    the measurement signal can be more accurately,the occasions for high precision
4. All five outputs status indicator, so whether debug or bring great convenience in the practical application of
5. Digital output detection distance adjustable.The analog output sensitivity adjustable, more flexible design
6. Using 1% resistor design, signal output is more accurate,
   suitable for the needs of high-precision measurement occasions
7. Onboard 3 M3 mounting holes for easy installation
8. 3.3V-9V power supply, and is compatible with most of the SCM systems available
9. The patch devices used in all SMT process auto matic welding, military quality reliable


Working principle :

The item is able to detect the flame band respectively in the range of 700-1100 nm,
short-wave near-infrared (SW-NIR), and is output via an electric signal (voltage signal).



Application of occasions:
All occasions flame detection needs

Use Case:
Fighting robot
Fire alarm

Product Details

1 x   5 Way Flame Sensor Arduino Module
