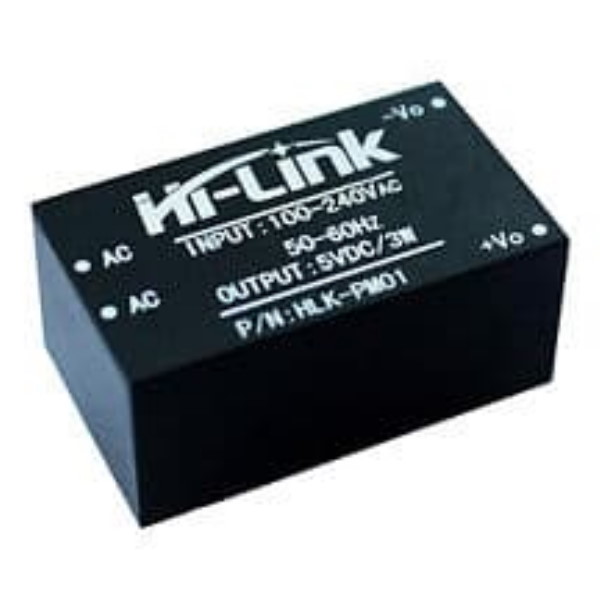

Product Details

Environment Conditions:

• Operation Temperature: -20°C to +60°C
• Store Temperature: -40°C to +80°C
• Relative Humidity: 5% to 95%
• Atmospheric Pressure: 80-106 kPa
• Sea Level Elevation: Up to 2000 m
• Vibration: Tested with vibration coefficient 2G from 10 to 500Hz, 10 minutes per cycle along X, Y, and Z axes

Electrical Characteristics:

• Rated Input Voltage: 100-240 Vac
• Input Voltage Range: 90-264 Vac
• Maximum Input Current: 0.2 A
• Input Current Surge: 10 A
• Maximum Input Voltage: 270 Vac
• Input Slow Start: 50 ms
• Input Low Voltage Efficiency: 69% at Vin=110V Ac, Output full-load
• Input High Voltage Efficiency: 70% at Vin=220V Ac, Output full-load
• Long-term Reliability: MTBF (Mean Time Between Failures) of 100,000 hours
• Output Voltage: 5 Vdc
• Short-term Maximum Output Current: 1000 mA
• Maximum Output Current for Long Time: 600 mA
• Voltage Regulation: ±0.2%
• Load Regulation: ±0.5%
• Output Ripple and Noise: 50 mV (MVP-p)
• Output Overcurrent Protection: Activates at 150-200% of maximum load current
• Output Short Circuit Protection: Automatically resumes normal operation after short circuit removal

Safety Characteristics:

• Designed with UL certified input insurance of 0.5A
• PCB Board: Double-sided copper-clad plate with 94-V0 fire rating level
• Safety Standards: Compliant with UL1012, EN60950, UL60950
• Insulation Voltage: I/P-O/P: 2500VAC
• Insulation Resistance: I/P-O/P > 100M Ohms / 500VDC at 25°C, 70% RH
• Conduction and Radiation: Complies with EN55011, EN55022 (CISPR22)
• Electrostatic Discharge: IEC / EN 61000-4-2 level 4, 8kV / 15kV
• RF Radiation Immunity: IEC / EN 61000-4-3
