R393.12

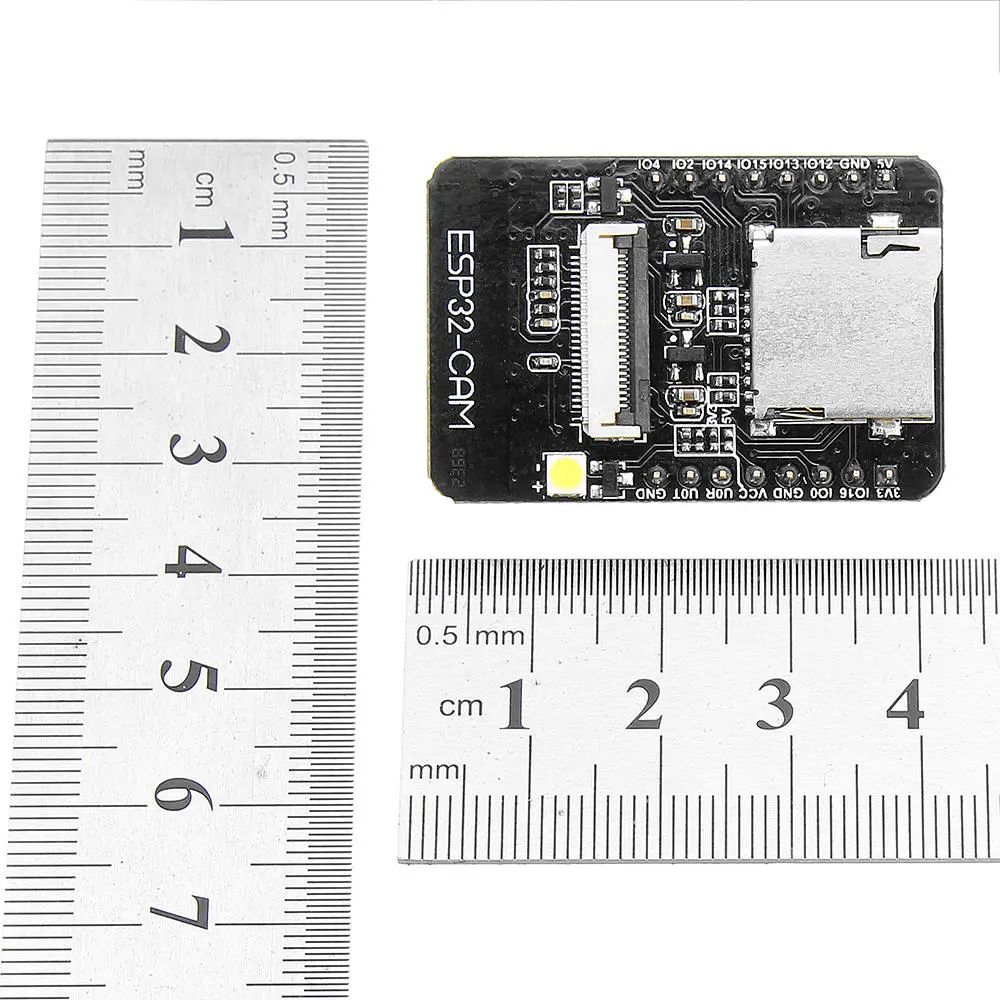

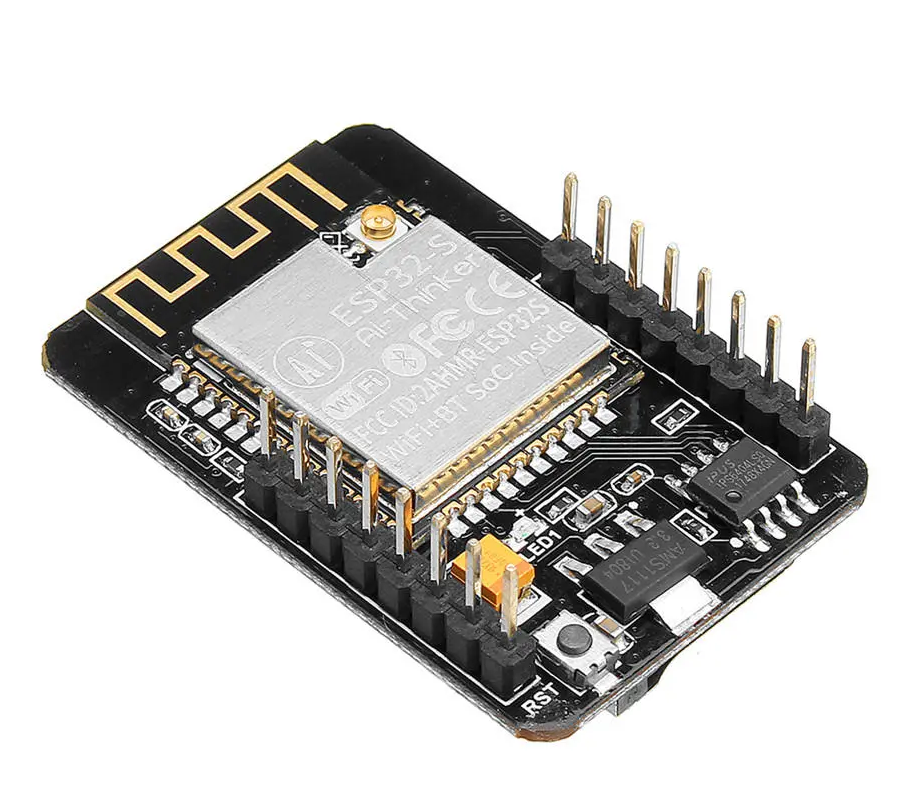

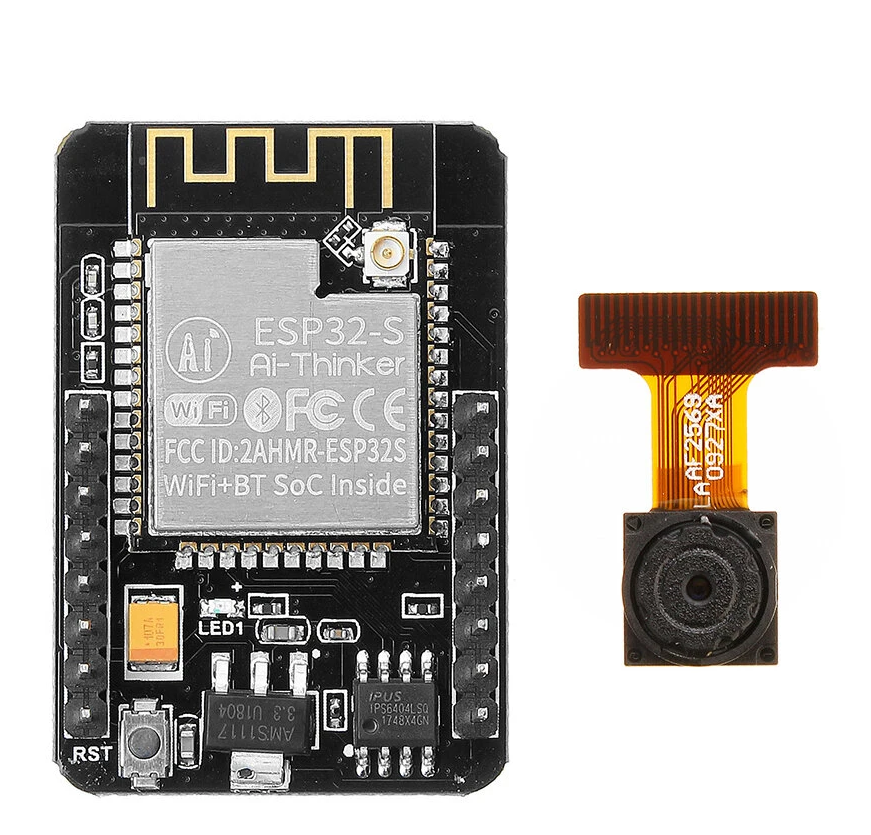

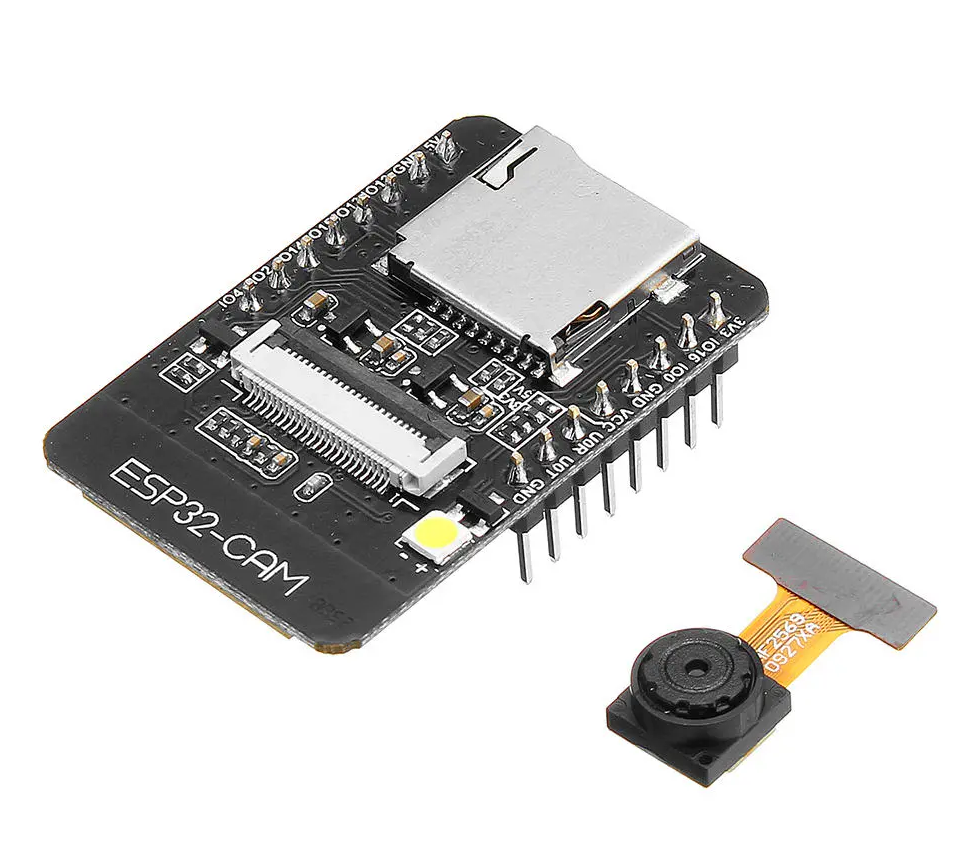

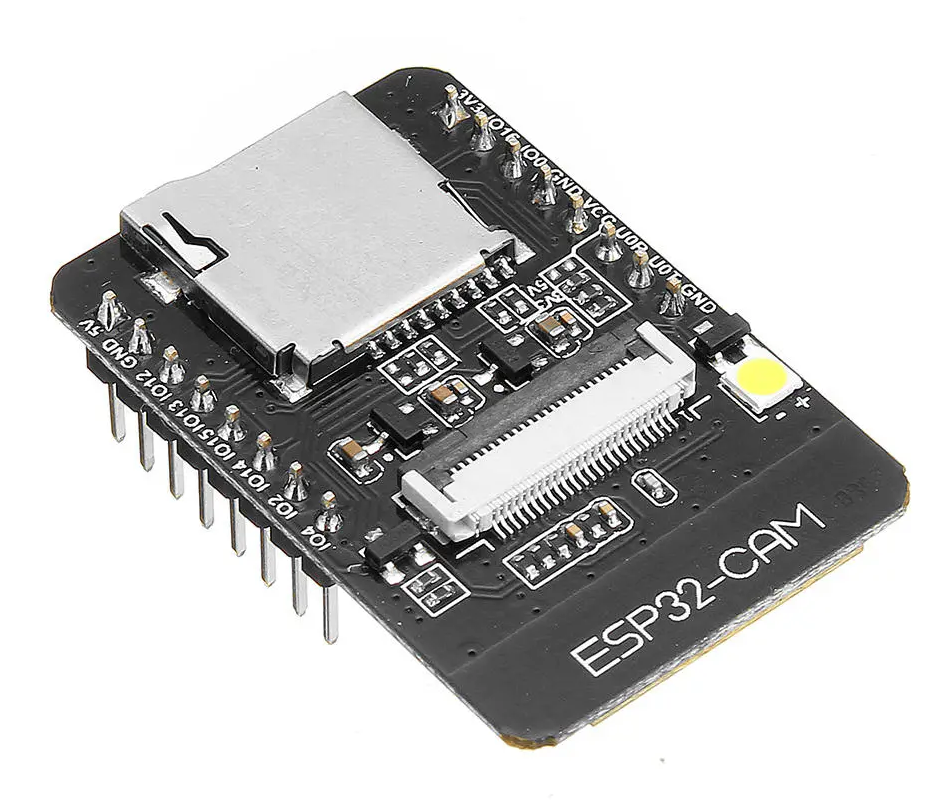

The ESP32-CAM is a WiFi and Bluetooth enabled camera module development board that is based on the ESP32 microcontroller. It is a low-cost, low-power solution for a variety of applications, including IoT projects, home automation, and remote monitoring.
The ESP32-CAM has an integrated camera module that can take still photos or video, and the data can be stored on the board's onboard memory or transferred to a connected device via WiFi or Bluetooth. The board also has a built-in microphone and support for image and video compression.
The ESP32-CAM is easy to program and can be used with various development platforms such as Arduino, MicroPython, and Espressif's own development environment. It has a wide range of features and capabilities, including support for OV2640 and OV7670 cameras, a built-in flash, and a built-in lithium battery charging circuit.
Some of the key features of the ESP32-CAM include:
This board is ideal for a wide range of applications, from home security cameras to remote monitoring and control, and it is a cost-effective and powerful solution for those looking to add camera capabilities to their IoT projects.
– 5V DC
– 180mA without Flash / 310mA with Max Flash
– 802.11 b/g/n/e/i
– 4.2 BR / EDR / BLE Standards
– Onboard PCB Antenna : 2dBi Gain
– 32bit Low-Power Dual-Core
– Onboard 520Kb SRAM with External 4M PSRAM
– Default 32Mbit
– 9
– Default 115200 bps
– Up to 600 DMIPS
– 80 to 240MHz
– 2412 to 2484MHz
– UART / SPI / I2C / PWM / ADC / DAC
– OV2640 and OV7670
– JPEG (Only OV2640) / BMP / Grayscale
– Up to 4GB
– CCK, 1Mbps : -90dBm
– CCK, 11Mbps : -85dBm
– 6Mbps (1/2 BPSK) : -88dBm
– 54Mbps (3/4 64-QAM) : -70dBm
– MCS7 (64Mbps, 72.2Mbps) : -67dBm
– 802.11b: 17±2 dBm (@11Mbps)
– 802.11g: 14±2 dBm (@54Mbps)
– 802.11n: 13±2 dBm (@MCS7)
– STA / AP / STA+AP
– Modem Sleep : 20mA @ 5V DC
– Light Sleep : 6.7mA @ 5V DC
– Deep Sleep : 6mA @ 5V DC
– Smart Config / AirKiss One-Click
– WPA / WPA2 / WPA2-Enterprise / WPS
N/A
