R166.32

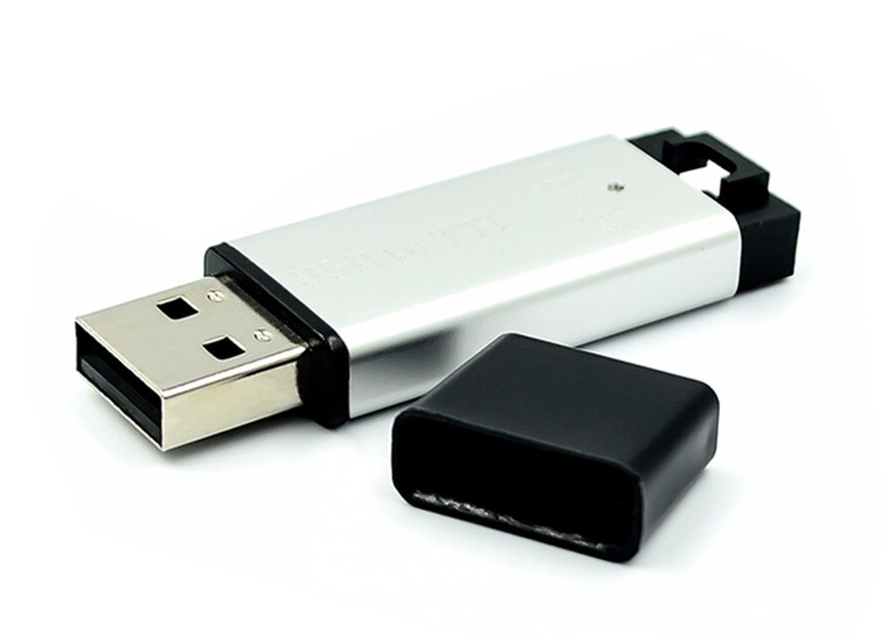

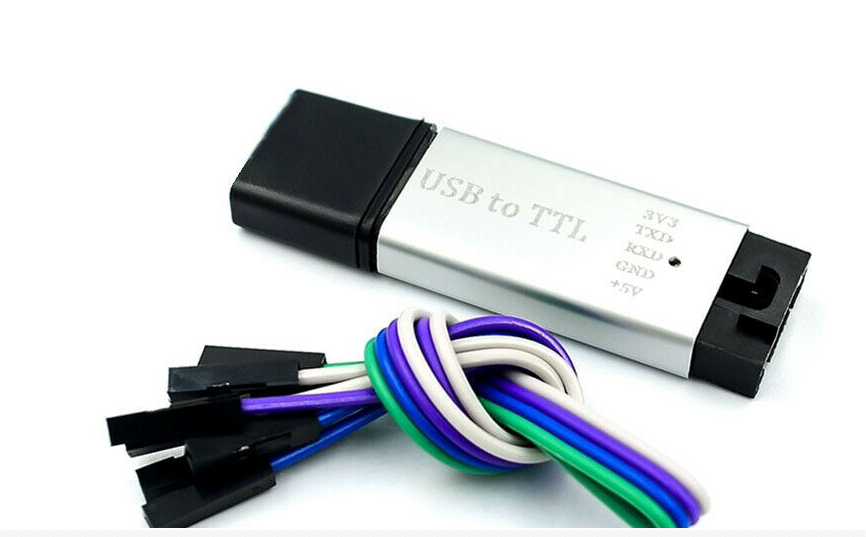

The so-called USB to TTL converter is actually a USB Serial Port to CMOS Logic-Level Serial Port converter. It has two ends: a USB connector, and four wires made to attach to terminal posts. It contains a chip that’s able to trick your laptop into thinking a serial port is installed.
You plug the USB port into your laptop, and it appears to your laptop as a new serial port. It uses standard laptop USB serial port device drivers. You connect the four wires up to power, ground, serial RX and serial TX on an Arduino or other development board, these signals use the correct voltage levels for the development board rather than conventional RS-232 levels, and it appears to your Arduino that something is talking to it over its serial port.
Stable and reliable chipset CP2102USB specification 2.0 compliant with full-speed 12Mbps.Standard USB type A male and TTL 5pin connector. 5pins for 3.3V,TXD,RXD,GND & 5VAll handshaking and modem interface signalsBaud rates: 300 bps to 1.0Mbps.Byte receive buffer; 640 byte transmit buffer.Hardware or X-On/X-Off handshaking supported.Event character support Line break transmission.USB suspend states supported via SUSPEND pins.Temperature Range: -40° to +85°.Supports Windows 98SE, 2003, XP, Vista, Window7, Mac OSX , Linux 2.6.x and 2.4.36
N/A
