R340.20

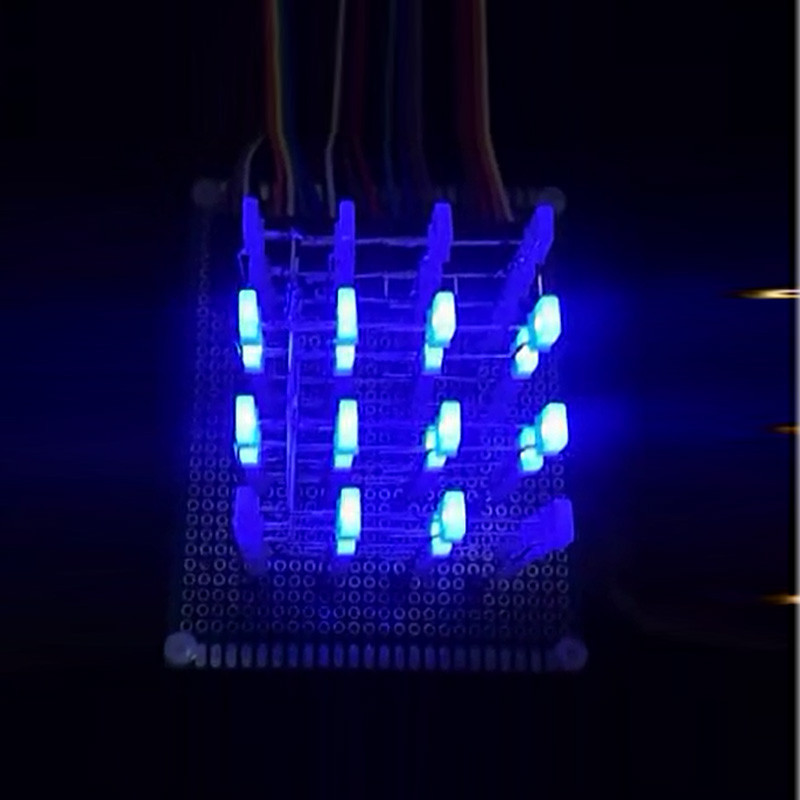

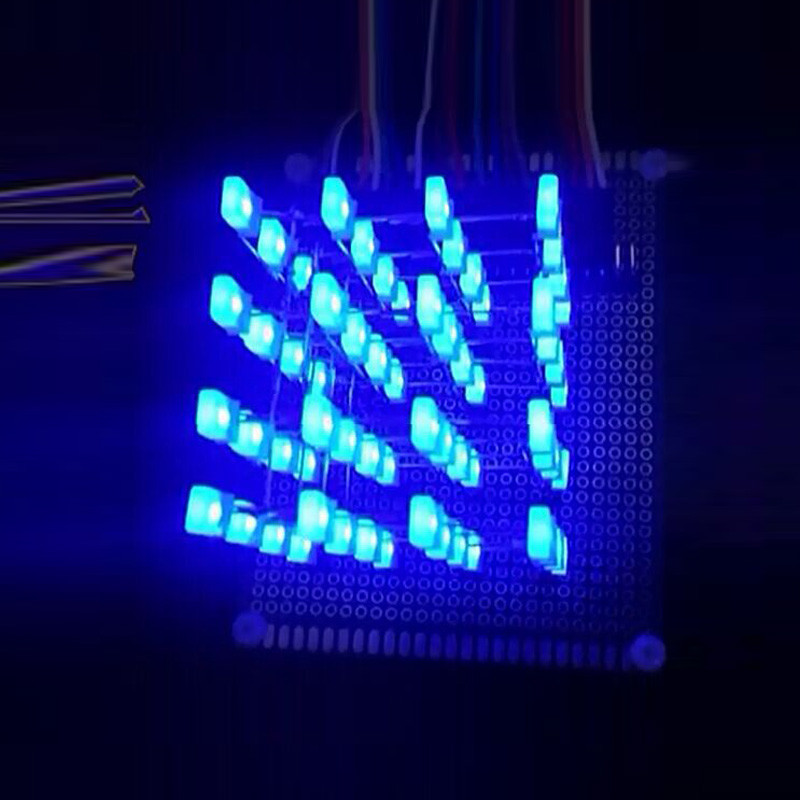

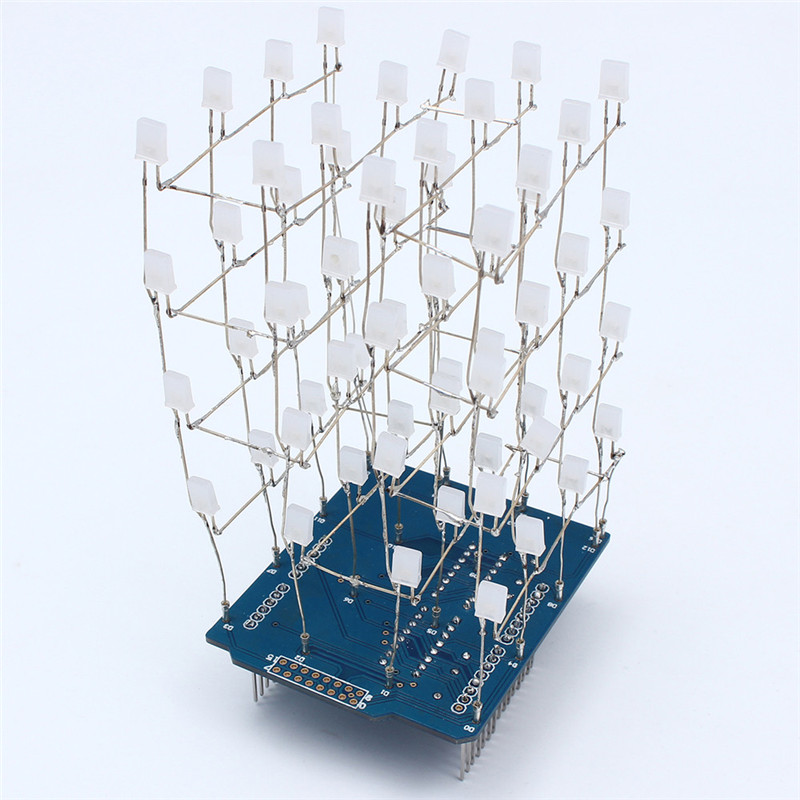

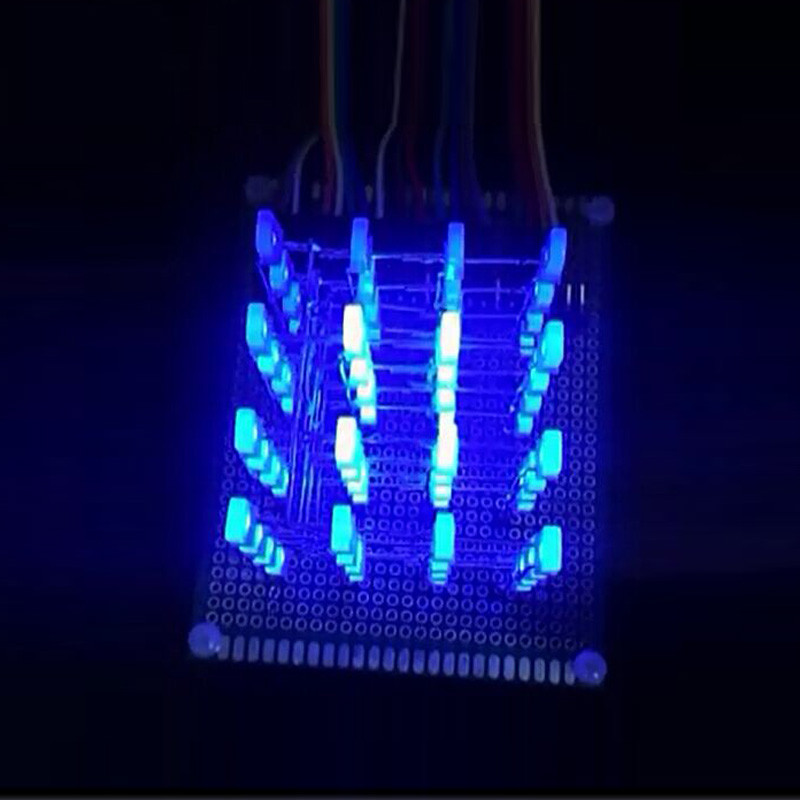

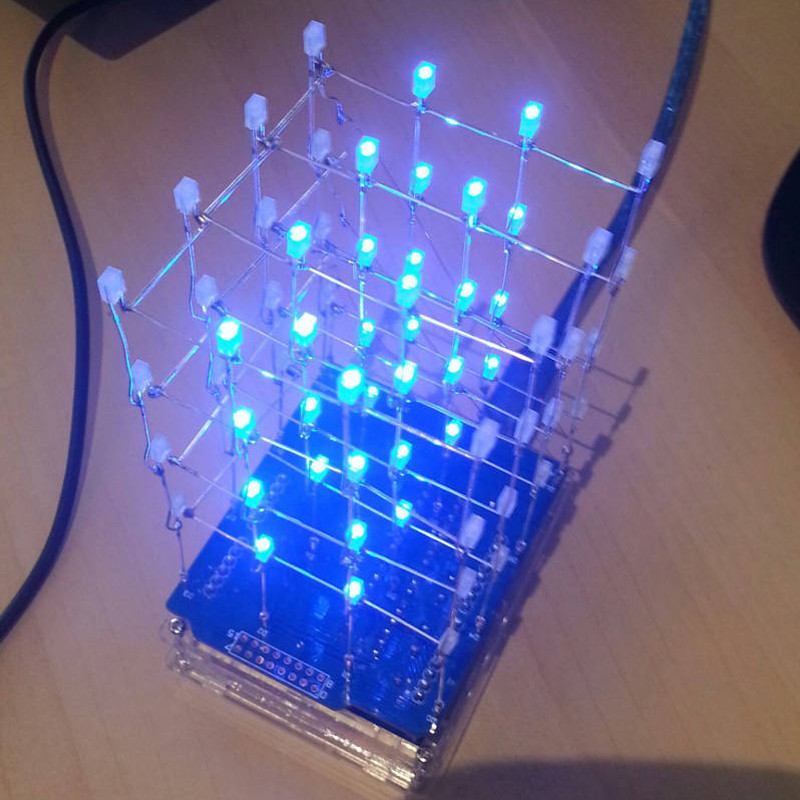

A 4x4x4 LED cube is a cube-shaped electronic circuit that consists of 64 individual light emitting diodes (LEDs). The cube is made up of four layers, each containing 16 LEDs arranged in a 4x4 grid. The LEDs are controlled by an Arduino microcontroller, which is a type of computer that can be programmed to control the LEDs in different patterns and sequences. The Arduino shield kit allows you to easily connect the LED cube to an Arduino board and start programming the LEDs. The blue LED 3D matrix light cube is a fun and interactive project that can be used for a variety of purposes, including as a decorative light display or as a teaching tool for programming and electronics.

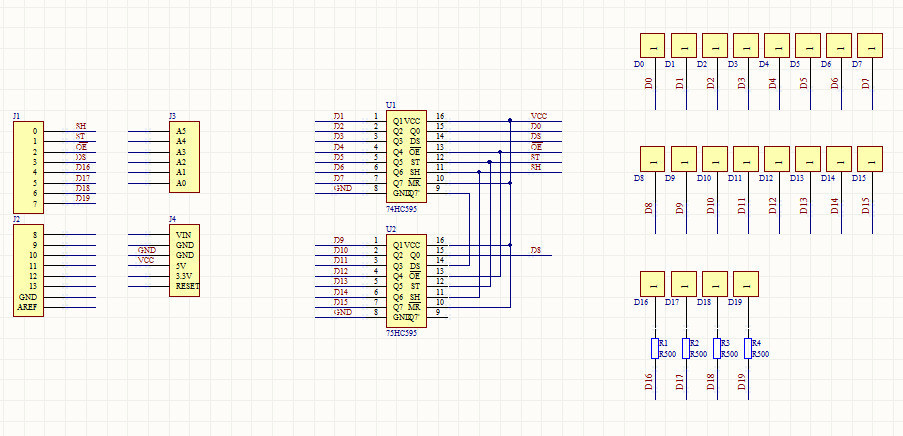

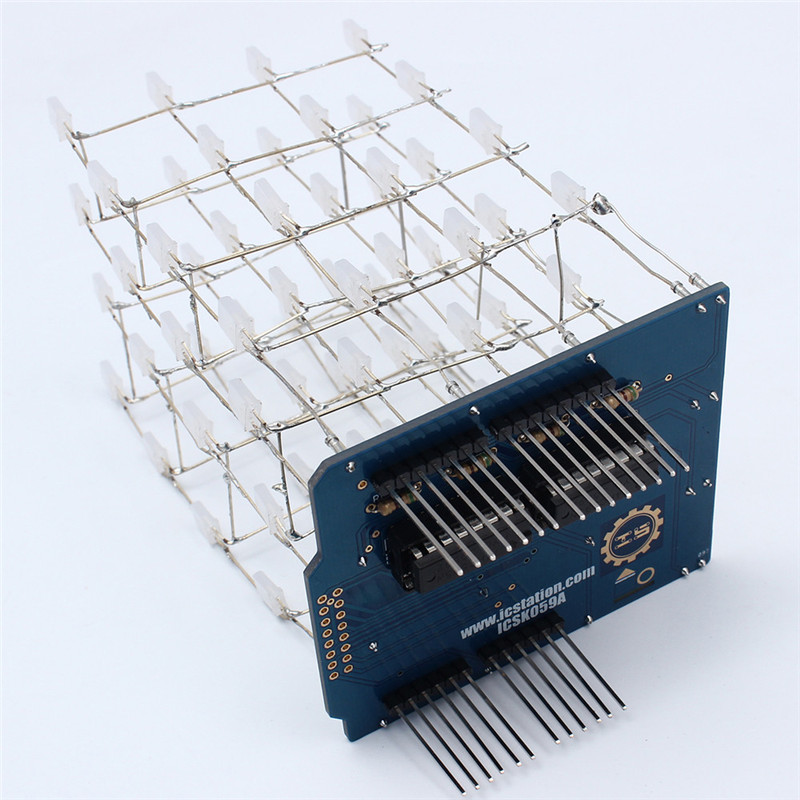

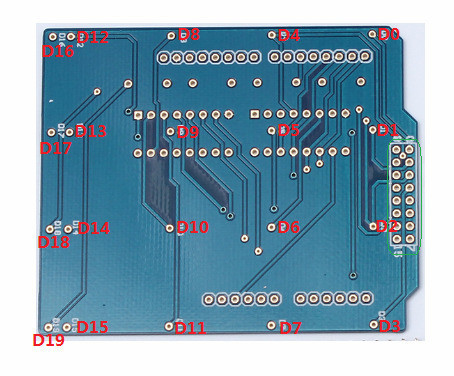

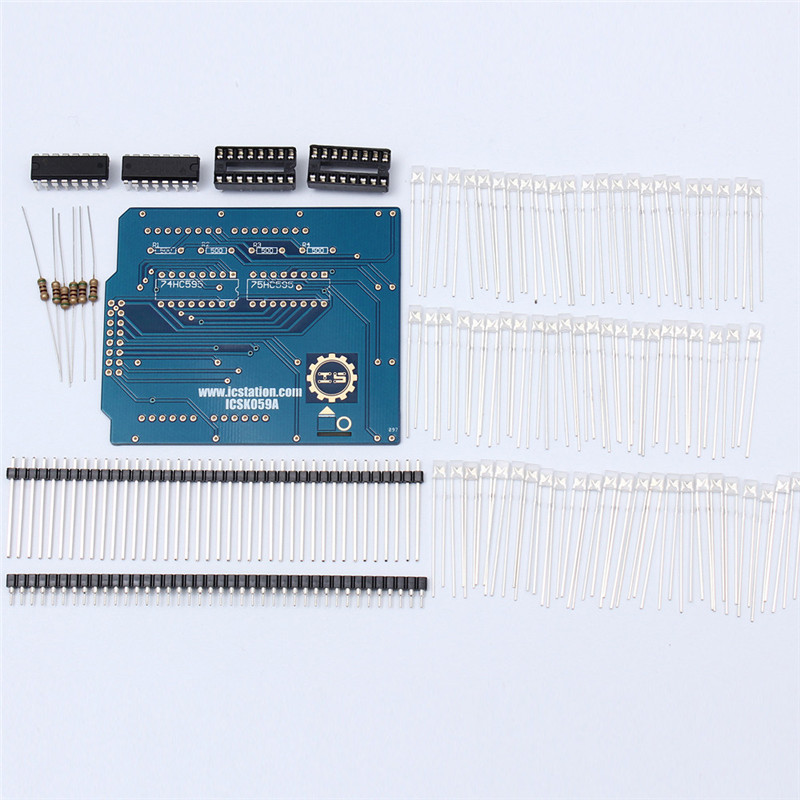

4x4x4 Light Cube kit uses 64 cuboid LED Expansion board uses two 74HC595 shift register chips, using eight I/Os can light the 4x4x4 Light Cube,it’s hardware resources needed is less than other 4x4x4 light cubic expansion board (needs 20 I/Os to control).1. Circuit DescriptionThe display part of ICSTATION 4x4x4 Light Cube kit consists of 64 cuboid LED,uses two 74HC595shift register chip to control LED anode, the 4 I/O ports controls 4 common cathodes of LED.2. ParametersControl module: control boardPCB size:61*74mmLED color:blueAttention:1).You can choose round head or other color’s LED(Our kit is 5mm blue cuboid LED ).2).This kit is 4x4x4 light cubic expansion board,without control chip or control module.

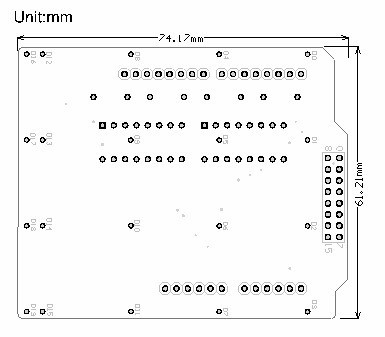

PCB size:61*74mmLED color:blue
N/A
