Product Details

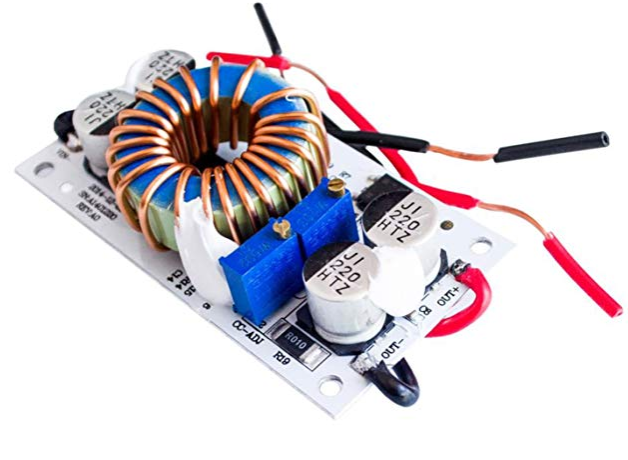

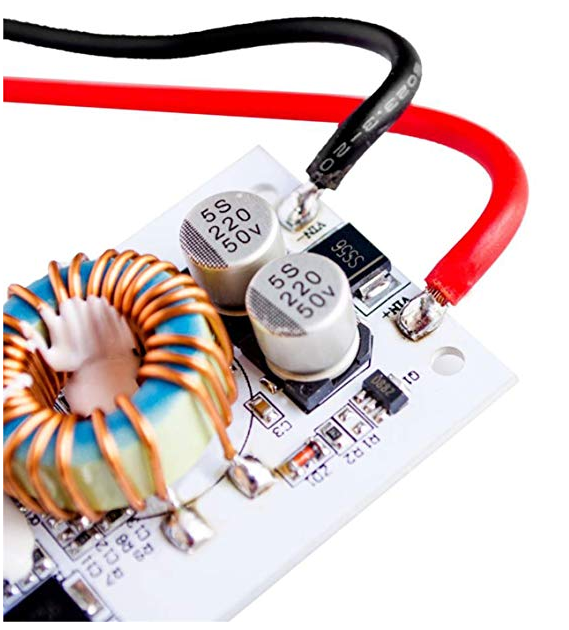

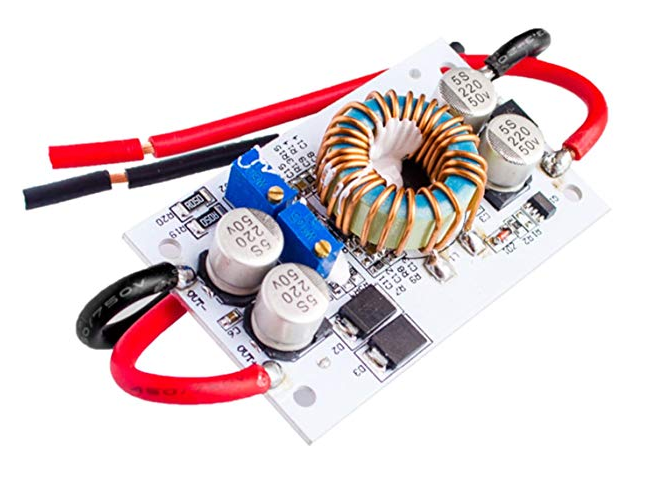

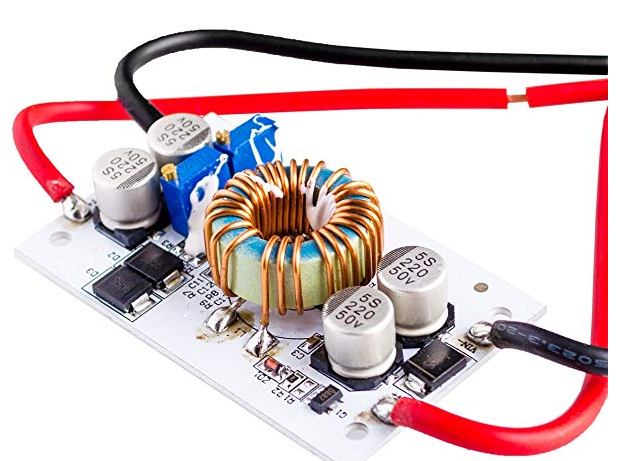

Module properties: non-isolated step-up module (BOOST)
Input voltage : DC8.5V-48V
Input current : 10A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current : 10mA (12V liter 20V , the output voltage , the higher the current will increase too quiet )
Output voltage : 10-50V continuously adjustable
Output current : 10A MAX exceed 6A please enhance heat dissipation ( input, output pressure related to the pressure the greater the output current is smaller )
Constant range : 0.2-8A
Output Power : = input voltage * 10A
For more power , the two modules can be used in parallel, such as the output to be 10A, two modules can be used in parallel ,
The current per module can be transferred to 5A .
Temperature: -40 to + 85 degrees ( ambient temperature is too high , please enhance heat dissipation )
Operating frequency : 150KHz
Conversion efficiency : up to 96% ( efficiency and input and output voltage, current , pressure -related )
Overcurrent protection : Yes ( input exceeds 13A, automatically reduces the output voltage , have a range of error . )
Input reverse polarity protection: Yes, ( less than 5A as the need for more in the reverse current in the input string into the diode )
Installation method: 4Pcs 3mm screw holes
Module size : 70*36*13mm（L*W*H）
Weight : 50 g
