R25.80

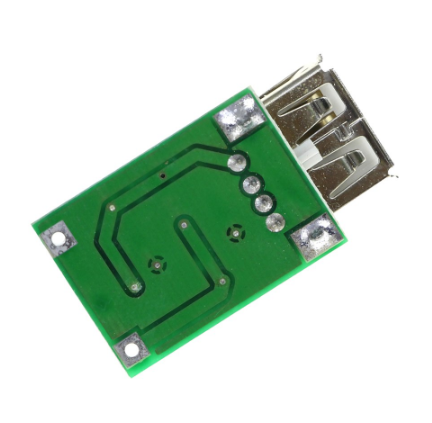

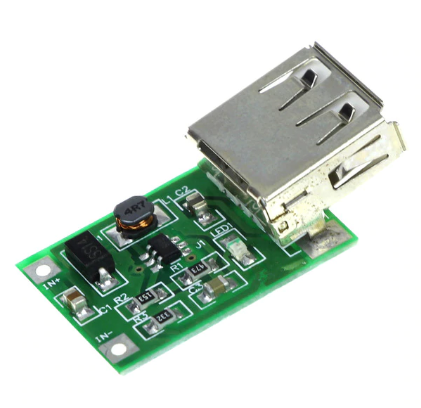

Use this step-up booster to convert an input voltage ranging from 1.5V to 5V to provide a stable 5V output via a female USB port that your phone (or other mobile device) can connect to to recharge. If you are designing your own mobile power supply system then this is a great component to include.
Module Properties: non-isolated step-up module (BOOST)
input voltage: 1-5V
Output voltage: 5.1-5 .2 V
Output Current: Rated 1A-1.5A (single lithium input), the maximum 1.5A (single lithium input)
Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
Switching frequency: 500KHz
Output ripple: 30mV (MAX) 20M bandwidth (input 4V output 5.1V 1A)
Voltage indication: LED lights with load (input voltage less than 2.7V LED indicator off)
Operating Temperature: Industrial (-40°c to +85°c)
Full load temperature rise: 30°c
Quiescent Current: 130uA
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please use the lithium battery with protection.)
Input Reverse Polarity Protection: None
Connection: Welding
Input: IN + Postive, IN-Negative
Output: USB Output
